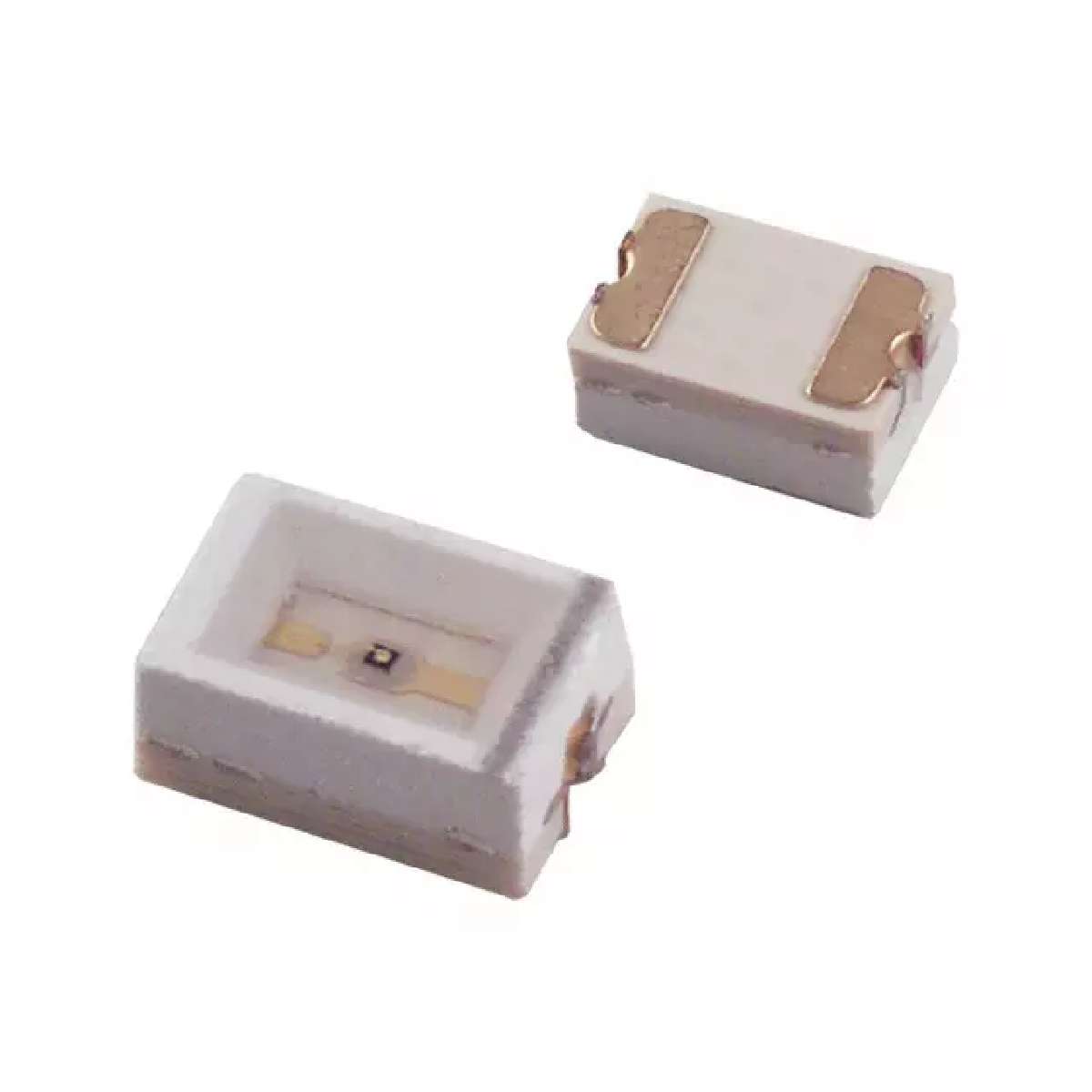

SML-010 系列 绿色 10 mcd 透明 2.2 V 贴片 LED 带反射器 表面贴装
* Reflectors are used to achieve a high luminance. * Emitting Color: green. * Rectangular and leadless 3x2mm * Can be mounted by automatic mounting.
得捷:
LED GREEN CLEAR 3020 SMD
安富利:
LED Uni-Color Green 560nm 2-Pin Chip LED T/R
Chip1Stop:
LED Uni-Color Green 560nm 2-Pin Chip LED T/R
Verical:
LED Uni-Color Green 560nm 2-Pin Chip LED T/R
正向电压 2.2 V
波长 560 nm
发光强度 10 mcd
视角 110°
透镜样式 Non-Diffused
峰值波长 560 nm
耗散功率 70 W
测试电流 20 mA
正向电流 25 mA
正向电流Max 25 mA
工作温度Max 85 ℃
工作温度Min -30 ℃
耗散功率Max 70 mW
安装方式 Surface Mount
引脚数 2
封装 1208
长度 3.00 mm
宽度 2 mm
高度 1.50 mm
封装 1208
颜色 Green
工作温度 -30℃ ~ 85℃
外观颜色 Transparent
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
