带施密特触发器输入双单稳态触发器 DUAL MONOSTABLE MULTIVIBRATORS WITH SCHMITT TRIGGER INPUTS
Think of Texas Instruments" monostable multivibrator the next time you need to be alerted when a chosen condition is met within your project. This monostable multivibrator has an operating temperature range of -40 °C to 85 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This device has a typical operating supply voltage of 2.5|3.3|5 V. Its minimum operating supply voltage of 2 V, while its maximum is 5.5 V.
数字逻辑电平 TTL
电源电压DC 2.00V ~ 5.50V
输出电流 12 mA
电路数 2
位数 2
电压波节 2.50 V, 3.30 V
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 16

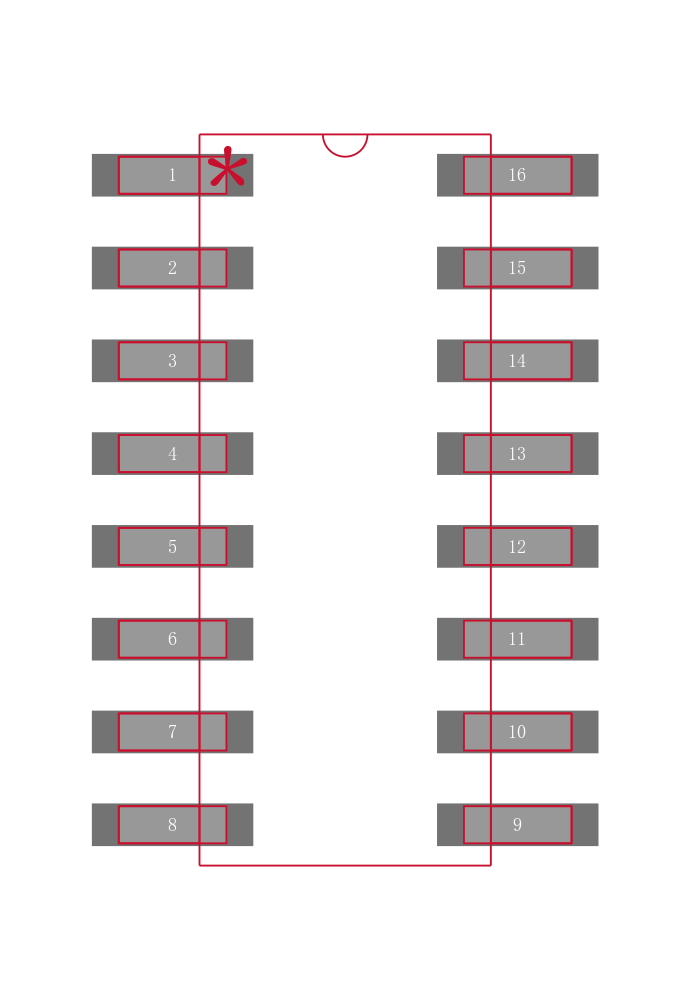

封装 SOIC-16
封装 SOIC-16
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74LV221ADR TI 德州仪器 | 当前型号 | 当前型号 |
SN74LV221AD 德州仪器 | 完全替代 | SN74LV221ADR和SN74LV221AD的区别 |
SN74LV221APW 德州仪器 | 完全替代 | SN74LV221ADR和SN74LV221APW的区别 |
SN74LV221APWT 德州仪器 | 类似代替 | SN74LV221ADR和SN74LV221APWT的区别 |
