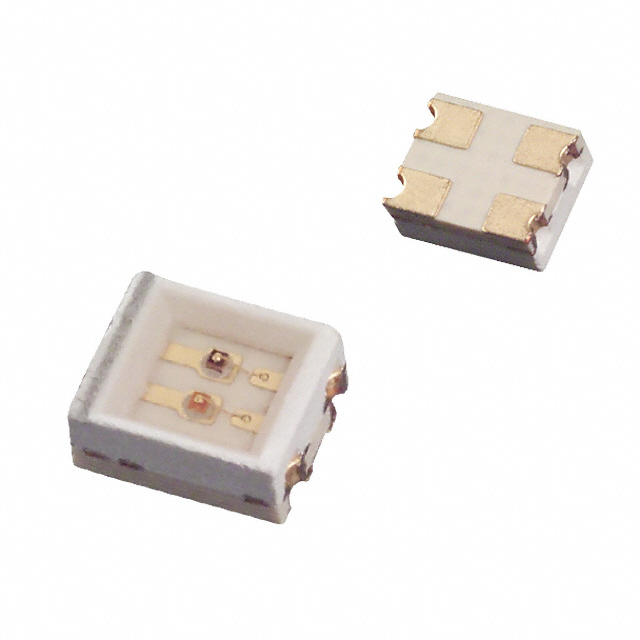

SML-020 系列 绿色/红色 1210 100° 透明 20/6.3 mcd 2.2/2 V LED 带 反射器
Green, Red Indication - Discrete 2.2V Green, 2V Red 1210 3225 Metric
欧时:
Dual color chip LED with reflector
立创商城:
SML-020MVTT86
得捷:
LED GREEN/RED CLEAR 1210 SMD
贸泽:
Standard LEDs - SMD DUAL GREEN/650RED SMD TRANS LENS
富昌:
SML-020 系列 绿色/红色 1210 100° 透明 20/6.3 mcd 2.2/2 V LED 带 反射器
Chip1Stop:
LED Bi-Color Green/Red 4-Pin Chip LED T/R
Win Source:
Green, Red LED Indication - Discrete 2.2V Green, 2V Red 1210 3225 Metric
正向电压 2.2 V
波长 572nm, 630nm
发光强度 20 mcd
视角 100°
透镜样式 Non-Diffused
峰值波长 570nm, 650nm
测试电流 20 mA
正向电流 20 mA
工作温度Max 85 ℃
工作温度Min 40 ℃
安装方式 Surface Mount
封装公制 3225
封装 1210
长度 3 mm
宽度 2.5 mm
高度 1.50 mm
封装公制 3225
封装 1210
颜色 Green, Red
外观颜色 Transparent
产品生命周期 Not Recommended for New Designs
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
