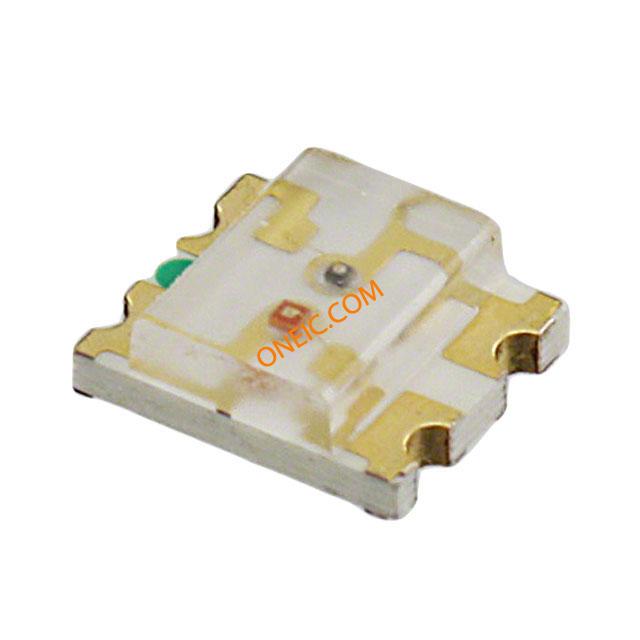

SM1210 系列 红色-绿色 140° 16/15 mcd 无色 透明 1.9/2.1 V LED 表面贴装
** 1204 Package SMT s**
Bivar surface mount 1204 package LEDs can be used in almost any lighting or indication application. The right angle package is ideal for small scale applications such as edge lighting or general indication. Low power consumption and excellent long life reliability are suitable for battery powered equipment. A wide variety of wavelength and intensity combinations are available to meet any illumination need.
额定功率 69 mW, 78 mW
波长 570nm Green,643nm Red
发光强度 15 mcd
视角 130°
峰值波长 568nm, 660nm
耗散功率 78/69mW
测试电流 20 mA
正向电流 20 mA
正向电流Max 30 mA
工作温度Max 80 ℃
工作温度Min -30 ℃
安装方式 Surface Mount
引脚数 4
封装公制 3225
封装 1210
长度 3.2 mm
宽度 2.7 mm
高度 1.10 mm
封装公制 3225
封装 1210
颜色 Green, Red
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
