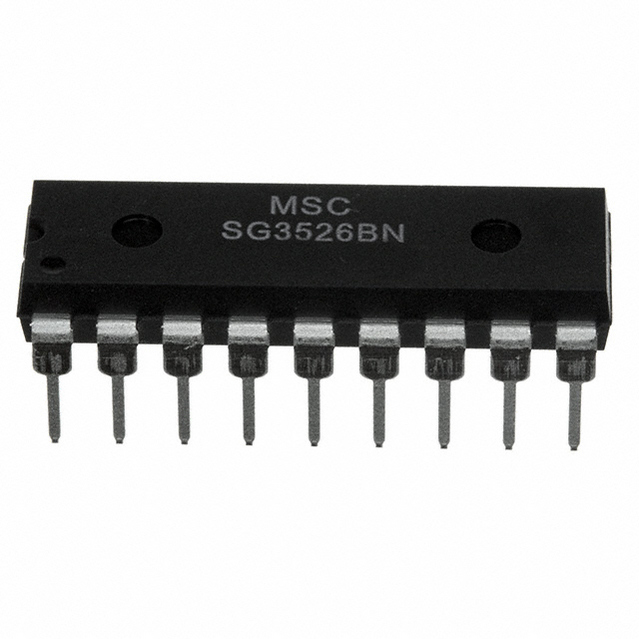

SG3526BN

调整脉冲宽度调制器 REGULATING PULSE WIDTH MODULATOR

FEATURES

• 8 to 35 volt operation

• 5V low drift 1% bandgap reference

• 1Hz to 500KHz oscillator range

• Dual 100mA source/sink

• Digital current limiting

• Double pulse suppression

• Programmable deadtime

• Improved undervoltage lockout

• Single pulse metering

• Programmable soft-start

• Wide current limit common mode range

• TTL/CMOS compatible logic ports

• Symmetry correction capability

• Guaranteed 6 unit synchronization

• Shoot thru currents less than 100mA

• Improved shutdown delay

• Improved rise and fall time

HIGH RELIABILITY FEATURES - SG1526B

♦Available to MIL-STD-883

♦MIL-M38510/12603BVA - JAN1526BJ

♦Radiation data available

♦LMI level "S" processing available
