SDR1806-2R2ML

BOURNS  SDR1806-2R2ML  表面贴装功率电感器, SDR1806系列, 2.2 µH, ± 20%, 非屏蔽, 6800 µohm, 9 A

无屏蔽 绕线 器 6.8 毫欧最大 非标准

得捷:
FIXED IND 2.2UH 9A 6.8 MOHM SMD

立创商城:
2.2uH ±20% 9A 6.8mΩ

e络盟:
BOURNS  SDR1806-2R2ML  表面贴装功率电感器, SDR1806系列, 2.2 µH, ± 20%, 非屏蔽, 6800 µohm, 9 A

艾睿:

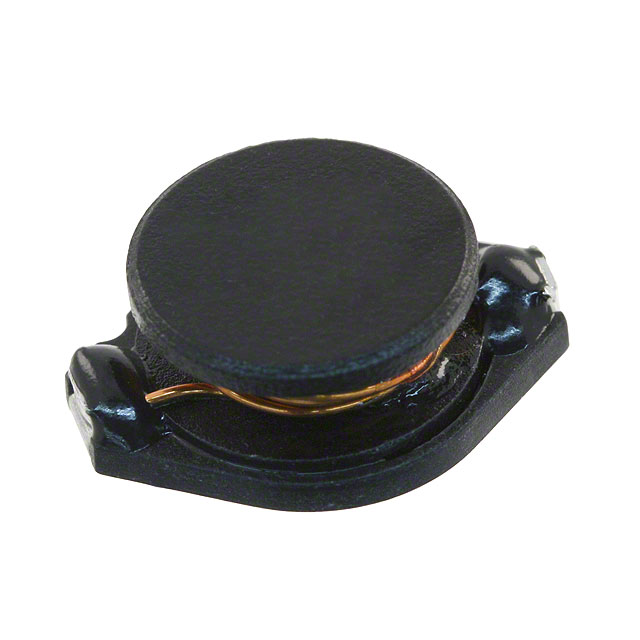

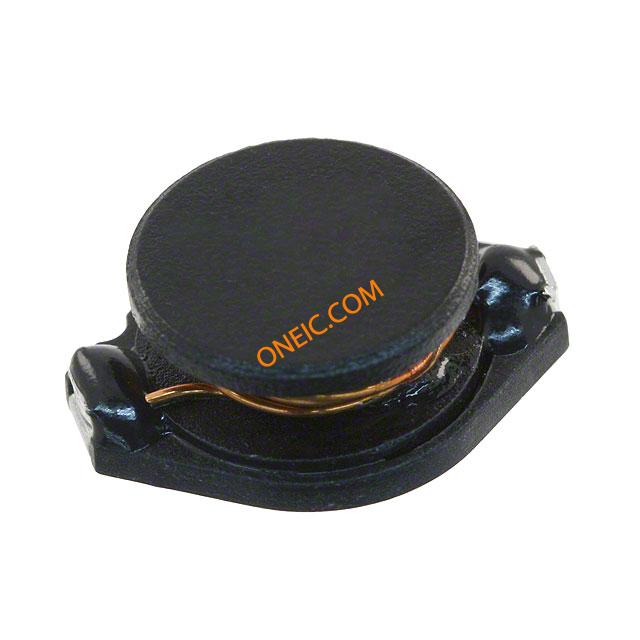

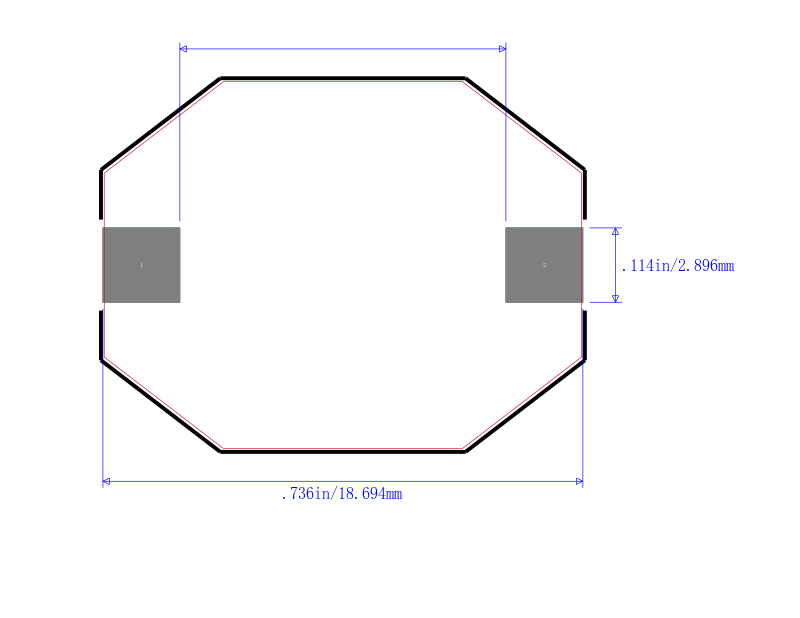

This power SDR1806-2R2ML surface mount inductor from Bourns is ideal for applications where space is a major influence of circuit design. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This product is 18.6 mm long, 6.9 mm tall and 14.3 mm deep. It has a tolerance of 20%. This device is made with wirewound technology. It has an inductance of 2.2u H. This SMD inductor has a maximum DC current of 9 A with a maximum resistance of 6.8m Ohm. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 55MTyp Hz.

安富利:
Ind Power Wirewound 2.2uH 20% 100KHz 22Q-Factor Ferrite 9A T/R

Verical:
Inductor Power Unshielded Wirewound 2.2uH 20% 100KHz 22Q-Factor Ferrite 9A 0.0068Ohm DCR T/R

Online Components:
Inductor Power Wirewound 2.2uH 20% 100KHz 22Q-Factor Ferrite 9A 6.8mOhm DCR T/R

Electro Sonic:
Inductor Power Wirewound 2.2uH 20% 100KHz 22Q-Factor Ferrite 9A 6.8mOhm DCR T/R
