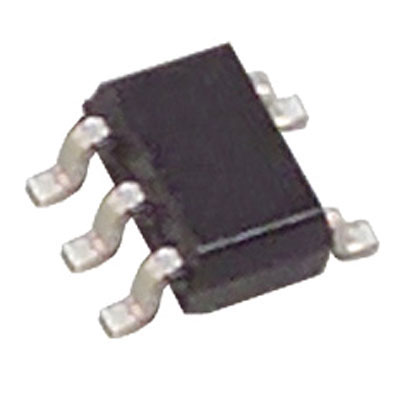

SN74AHCT1G14DCKR

TEXAS INSTRUMENTS  SN74AHCT1G14DCKR  非门, ACHT系列, 施密特触发, 1输入, 25 mA, 4.5V至5.5V, SC-70-5

逻辑类型Logic Type| 反相施密特触发器 Inverting Schmitt trigger \---|--- 电路数Number of Circuits| 1 输入数Number of Inputs| 1 电源电压VccVoltage - Supply| 4.5V~5.5V 静态电流IqCurrent - Quiescent Max| 10uA 输出高，低电平电流Current - Output High, Low| -8mA,8mA 低逻辑电平Logic Level - Low| 高逻辑电平Logic Level - High| 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL| 5.5ns @ 0.5V，50pF Description & Applications| SINGLE SCHMITT-TRIGGER INVERTER GATE ；EPIC Enhanced-Performance Implanted CMOS Process Inputs Are TTL-Voltage Compatible Latch-Up Performance Exceeds 250 mA Per JESD 17 Package Options Include Plastic Small-Outline Transistor DBV, DCK Packages 描述与应用| 施密特触发器逆变器器门;EPIC（增强型注入 CMOS）工艺  输入是TTL电压兼容  闭锁性能超过250 mA每 JESD17  包装选项包括塑料 小外形晶体管（DBV，DCK） 套餐
