SN74AHCT1G86DCKR

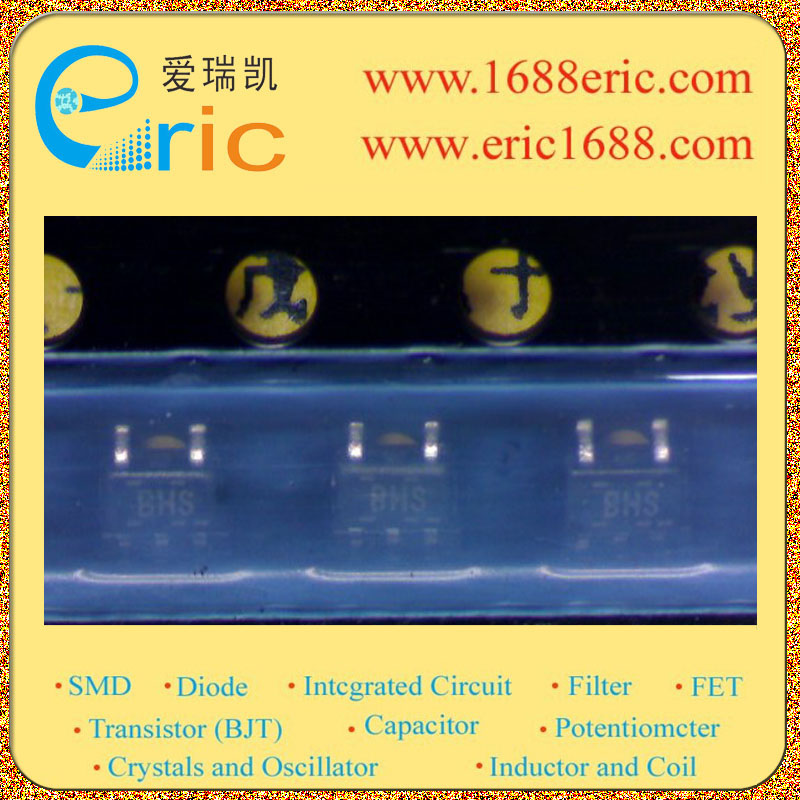

IC 异或门 SN74AHCT1G86DCKR SOT-353/SC70-5/SC-88A marking/标记 BH

逻辑类型Logic Type| 异或门 XOR Gate \---|--- 电路数Number of Circuits| 1 输入数Number of Inputs| 2 电源电压VccVoltage - Supply| 4.5V~5.5V 静态电流IqCurrent - Quiescent Max| 10uA 输出高，低电平电流Current - Output High, Low| -8mA,8mA 低逻辑电平Logic Level - Low| 0.8V 高逻辑电平Logic Level - High| 2V 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL| 5.5ns @ 0.5V，50pF Description & Applications| SINGLE 2-INPUT EXCLUSIVE-OR GATE ; Operating Range of 4.5 V to 5.5 V Max tpd of 8 ns at 5 V Low Power Consumption, 10-µA Max ICC ±8-mA Output Drive at 5 V Inputs Are TTL-Voltage Compatible Latch-Up Performance Exceeds 250 mA Per JESD 17 ESD Protection Exceeds JESD 22 – 2000-V Human-Body Model A114-A – 200-V Machine Model A115-A – 1000-V Charged-Device Model C101 描述与应用| 单路2输入异或门; 工作电压范围为4.5 V至5.5 V  最大吨5 V时为8 ns  低功耗，10μA最大ICC  ±8 mA输出驱动在5 V  输入是TTL电压兼容  闭锁性能超过250 mA每 JESD17  ESD保护超过JESD22 - 2000-V人体模型（A114-A） - 200-V机型号（A115-A） - 1000-V带电器件模型（C101）
