低功耗单路2输入正或非门 LOW-POWER SINGLE 2-INPUT POSITIVE-NOR GATE
logic gates from Texas Instruments are designed specifically to be interconnected and create a variety of different logic-based circuits. This gate has a minimum operating temperature of -40 °C and a maximum of 85 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This device has a typical operating supply voltage of 1.8|2.5|3.3 V. Its minimum operating supply voltage of 0.8 V, while its maximum is 3.6 V.
电源电压DC 800mV min
输出接口数 1
输出电流 4 mA
电路数 1
位数 1
传送延迟时间 6.40 ns
输入数 2
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 0.8V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 0.8 V
安装方式 Surface Mount

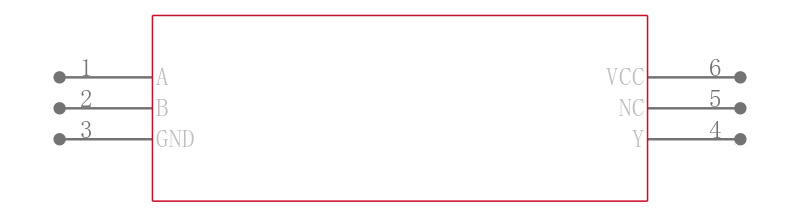

引脚数 6

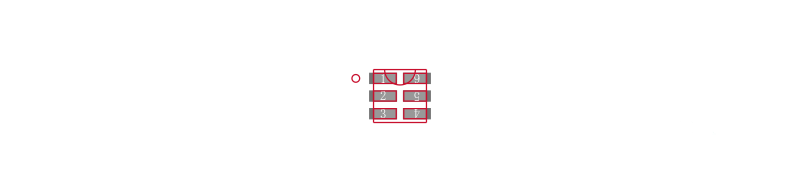

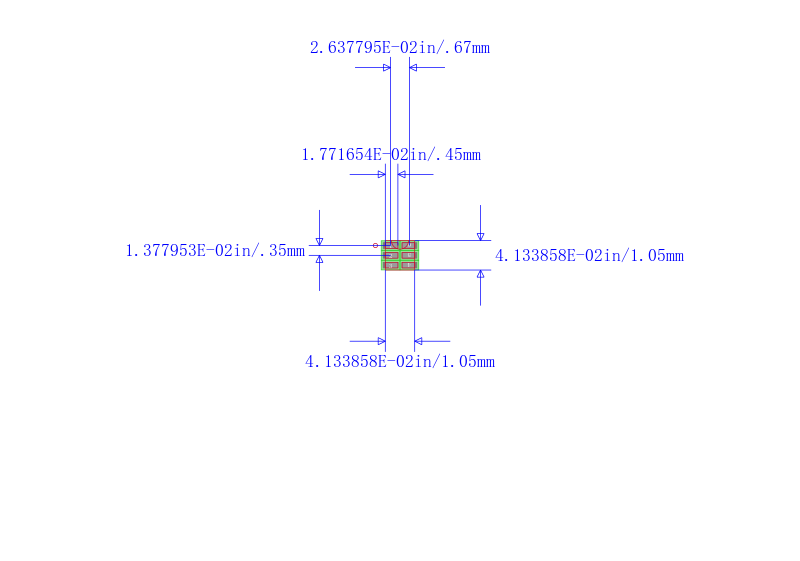

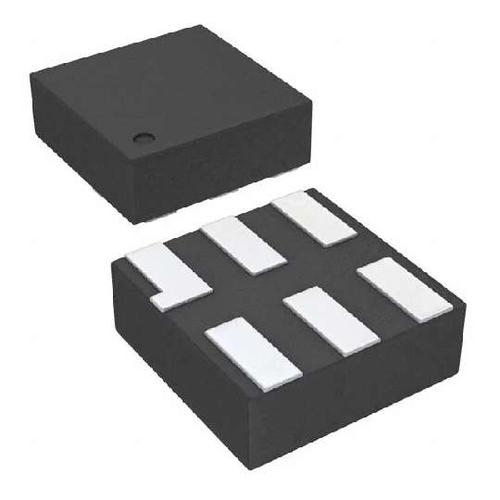

封装 XFDFN-6
封装 XFDFN-6
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
