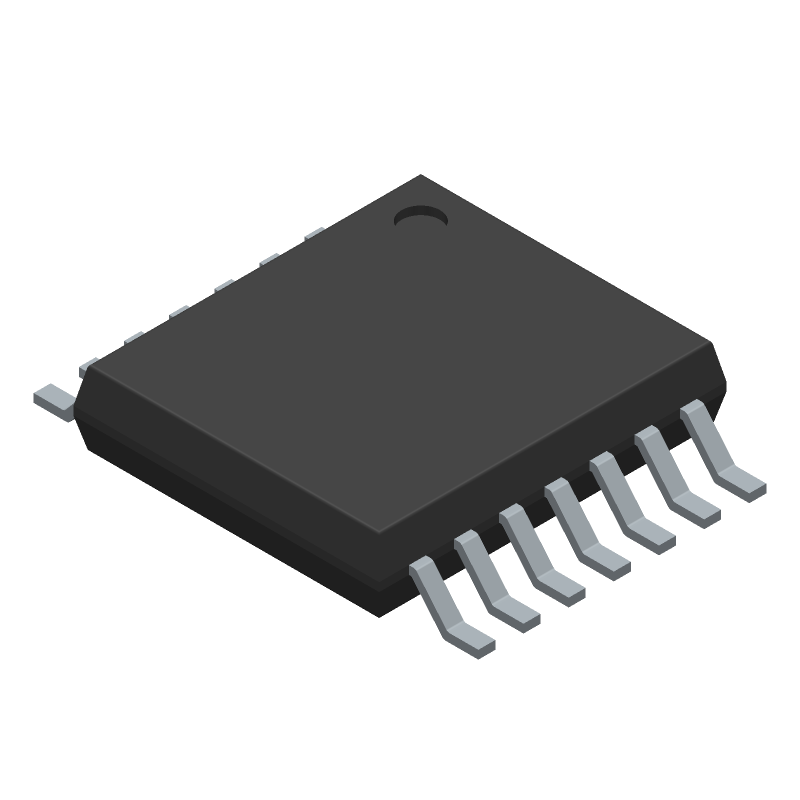

TEXAS INSTRUMENTS SN74HCT04PWR 非门, HCT系列, 1输入, 4 mA, 4.5V至5.5V, TSSOP-14
反相器 IC 6 通道 - 14-TSSOP
得捷:
IC INVERTER 6CH 1-INP 14TSSOP
立创商城:
SN74HCT04PWR
德州仪器TI:
6-ch, 4.5-V to 5.5-V inverters with TTL-compatible CMOS inputs
贸泽:
Inverters Hex
e络盟:
TEXAS INSTRUMENTS SN74HCT04PWR 非门, HCT系列, 1输入, 4 mA, 4.5V至5.5V, TSSOP-14
艾睿:
Texas Instruments brings you their latest SN74HCT04PWR inverting Schmitt trigger, an edge-triggered device that can essentially save the state of the device until a new state is generated. This inverting Schmitt trigger has an operating temperature range of -40 °C to 85 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V.
安富利:
Inverter 6-Element CMOS 14-Pin TSSOP T/R
Verical:
Inverter 6-Element CMOS 14-Pin TSSOP T/R
Newark:
# TEXAS INSTRUMENTS SN74HCT04PWR IC, HEX INVERTER, SMD, TSSOP14, 7V
力源芯城:
六反相器
Win Source:
IC HEX INV 14-TSSOP
DeviceMart:
IC HEX INV 14-TSSOP
电源电压DC 4.50V ~ 5.50V
输出电流 4 mA
电路数 6
针脚数 14
位数 6
传送延迟时间 23.0 ns
电压波节 5.00 V
逻辑门个数 6
输出电流驱动 -1.00 mA
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 14
封装 TSSOP-14
高度 1.05 mm
封装 TSSOP-14
重量 0.0009153494632 kg
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74HCT04PWR TI 德州仪器 | 当前型号 | 当前型号 |
SN74HCT04PWT 德州仪器 | 完全替代 | SN74HCT04PWR和SN74HCT04PWT的区别 |
SN74HCT04PW 德州仪器 | 类似代替 | SN74HCT04PWR和SN74HCT04PW的区别 |
SN74HCT08PW 德州仪器 | 类似代替 | SN74HCT04PWR和SN74HCT08PW的区别 |
