TEXAS INSTRUMENTS SN74LVC1G06DRLR. 逻辑芯片, 缓冲器 / 线驱动器, 反相, 5.5V, SOT-553
By driving the input to the transmission line this buffer and line driver by Texas Instruments will amplify any signal. With an open drain output, this is power management at its best. This line driver has a minimum operating temperature of -40 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. It has 1 channels per chip. This inverting device has a typical operating supply voltage of 1.8|2.5|3.3|5 V. Its minimum operating supply voltage of 1.65 V, while its maximum is 5.5 V.
电源电压DC 5.00 V
输出接口数 1
电路数 1
通道数 1
针脚数 5
位数 1
传送延迟时间 3.00 ns
逻辑门个数 1
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 1.65V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 1.65 V
安装方式 Surface Mount
引脚数 5

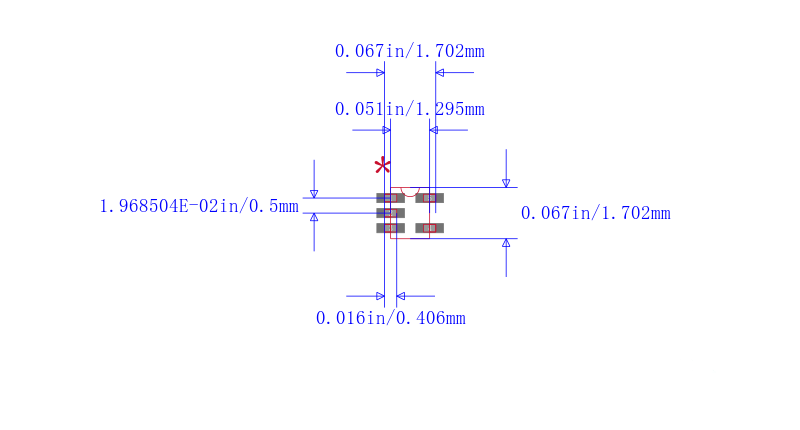

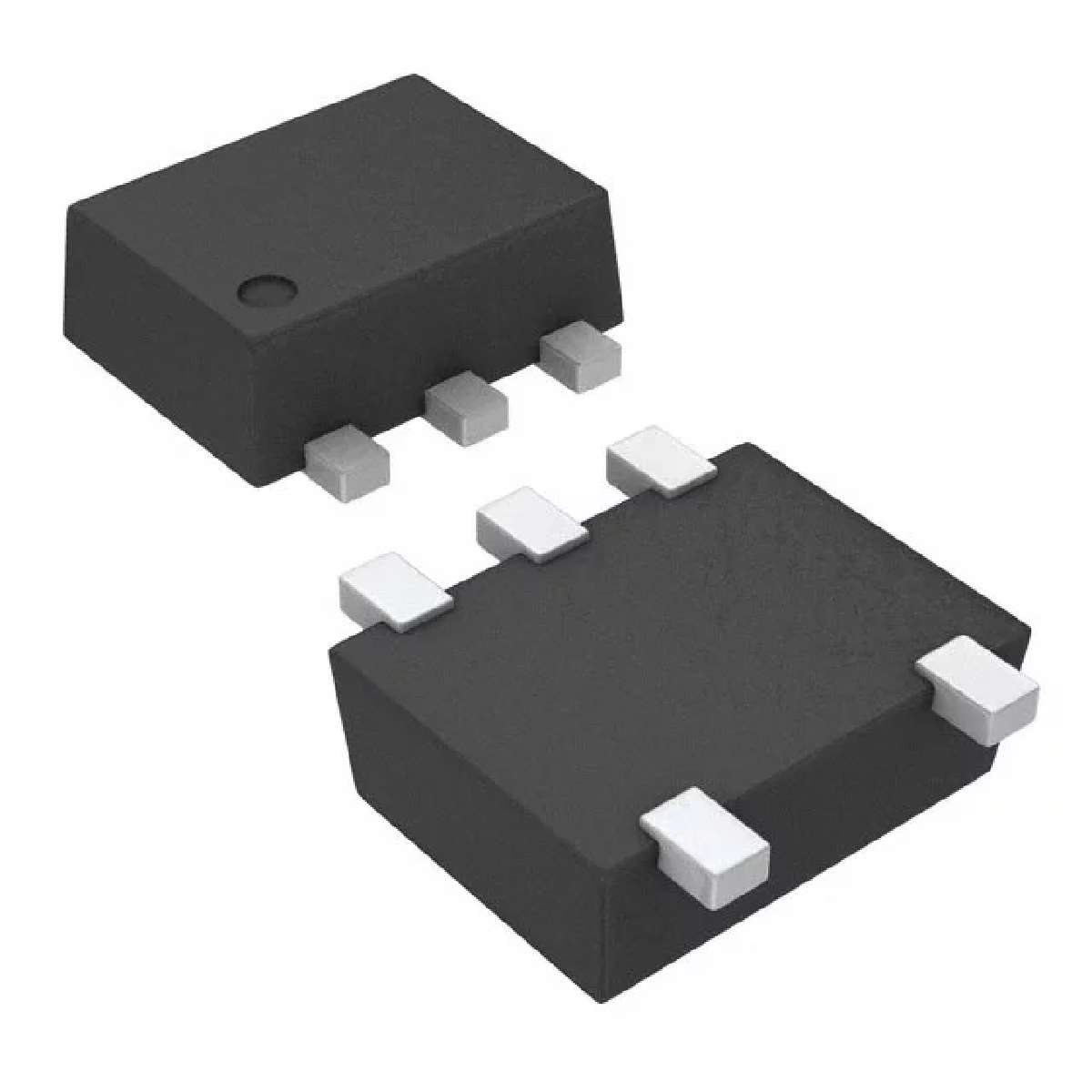

封装 SOT-553-5
长度 1.6 mm
宽度 1.2 mm
高度 0.55 mm
封装 SOT-553-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74LVC1G06DRLR TI 德州仪器 | 当前型号 | 当前型号 |
SN74LVC1G06DRLRG4 德州仪器 | 类似代替 | SN74LVC1G06DRLR和SN74LVC1G06DRLRG4的区别 |
NL17SZ06XV5T2G 安森美 | 功能相似 | SN74LVC1G06DRLR和NL17SZ06XV5T2G的区别 |
NL17SZ06XV5T2 安森美 | 功能相似 | SN74LVC1G06DRLR和NL17SZ06XV5T2的区别 |
