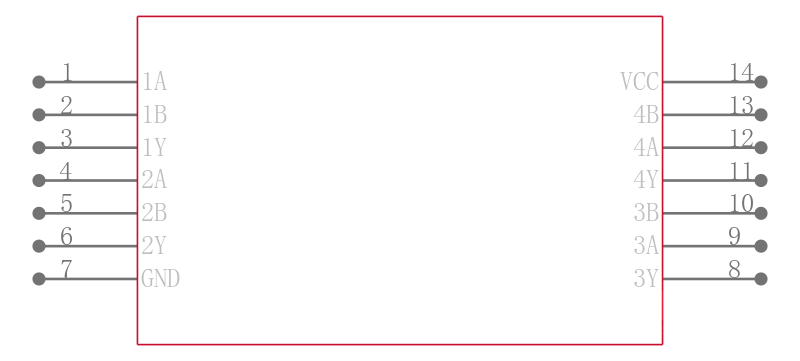

SN74LV86ADR

四路2输入异或门 QUADRUPLE 2-INPUT EXCLUSIVE-OR GATES

Description

The ’LV86A devices are quadruple 2-input exclusive-OR gates designed for 2-V to 5.5-V VCC operation.

These devices contain four independent 2-input exclusive-OR gates. They perform the Boolean function Y = A ⊕ B or Y = AB + AB in positive logic.

A common application is as a true/complement element. If one of the inputs is low, the other input is reproduced in true form at the output. If one of the inputs is high, the signal on the other input is reproduced inverted at the output.

Features

• 2-V to 5.5-V VCC Operation

• Max tpd of 8 ns at 5 V

• Typical VOLP Output Ground Bounce <0.8 V at VCC = 3.3 V, TA = 25°C

• Typical VOHV Output VOH Undershoot >2.3 V at VCC = 3.3 V, TA = 25°C

• Support Mixed-Mode Voltage Operation on All Ports

• Latch-Up Performance Exceeds 250 mA per JESD 17

• ESD Protection Exceeds JESD 22

   – 2000-V Human-Body Model A114-A

   – 200-V Machine Model A115-A

   – 1000-V Charged-Device Model C101

Applications

• EPOS

• Programmable Logic Controller PLC

• DCS and PAC: Analog Input Module

• Medical Meters: Portable

• Server Motherboard

• Printer
