SPD125R-334M

Inductor; Filter; Ind 330uH; Tol 20%; Cur 0.7A; SMT; DCR 0.6Ω

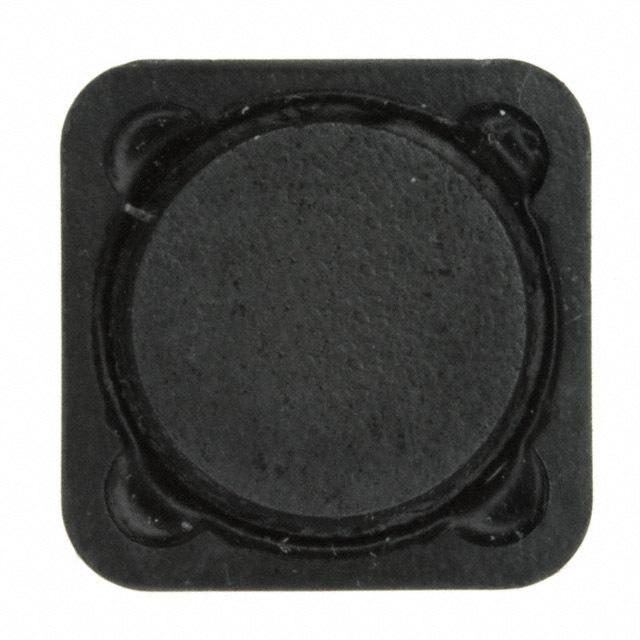

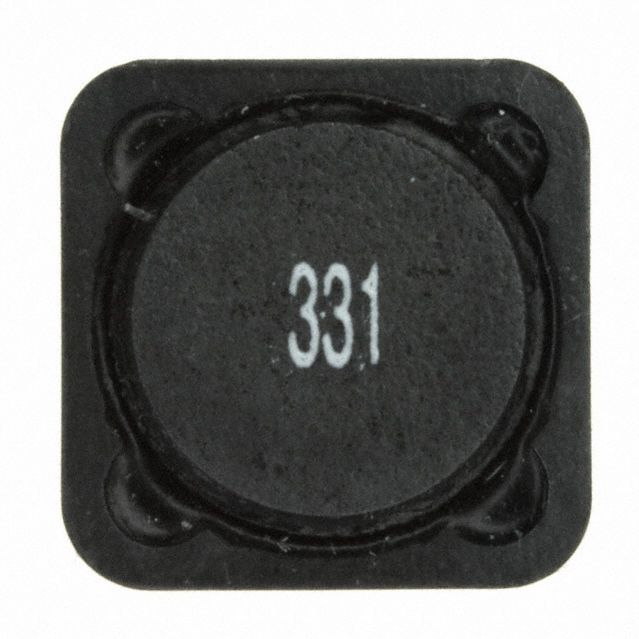

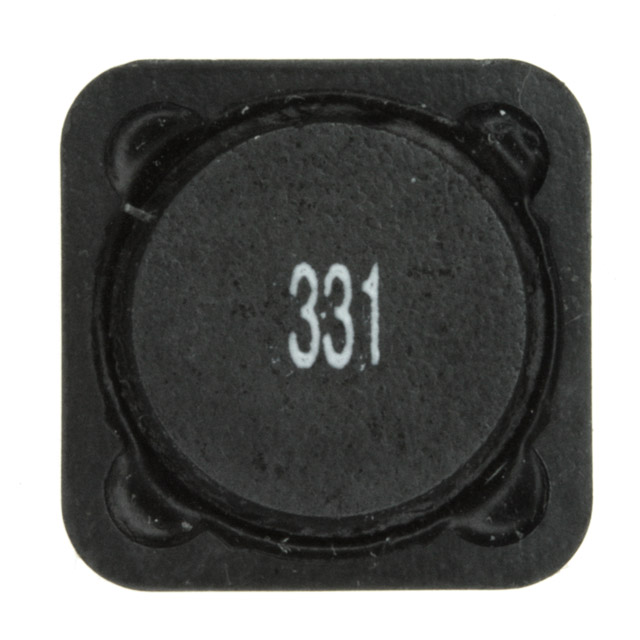

Shielded Surface Mounted Inductors

** Mechanical Configuration:** Units designed for surface mounting; ferrite core and ferrite sleeve

** Terminals are Solderable:** More than 95% new order coverage when subjected to soldering temperature

** Operating Temperature Range:** -55°C to +125°C

** Application Frequency Range:**

Values 2.2 μH to 10 μH 50 1.0 MHz Min.

Values above 10 μH to 300 KHz Min.

** Current Rating at 25°C Ambient:** The maximum DC current that will cause a 40°C maximum temperature rise and where the inductance will not decrease by more than 10% from its zero DC value

Units designed for surface mounting, ferrite core and ferrite sleeve
