??????????????单路2输入正或门 SINGLE 2-INPUT POSITIVE-OR GATE

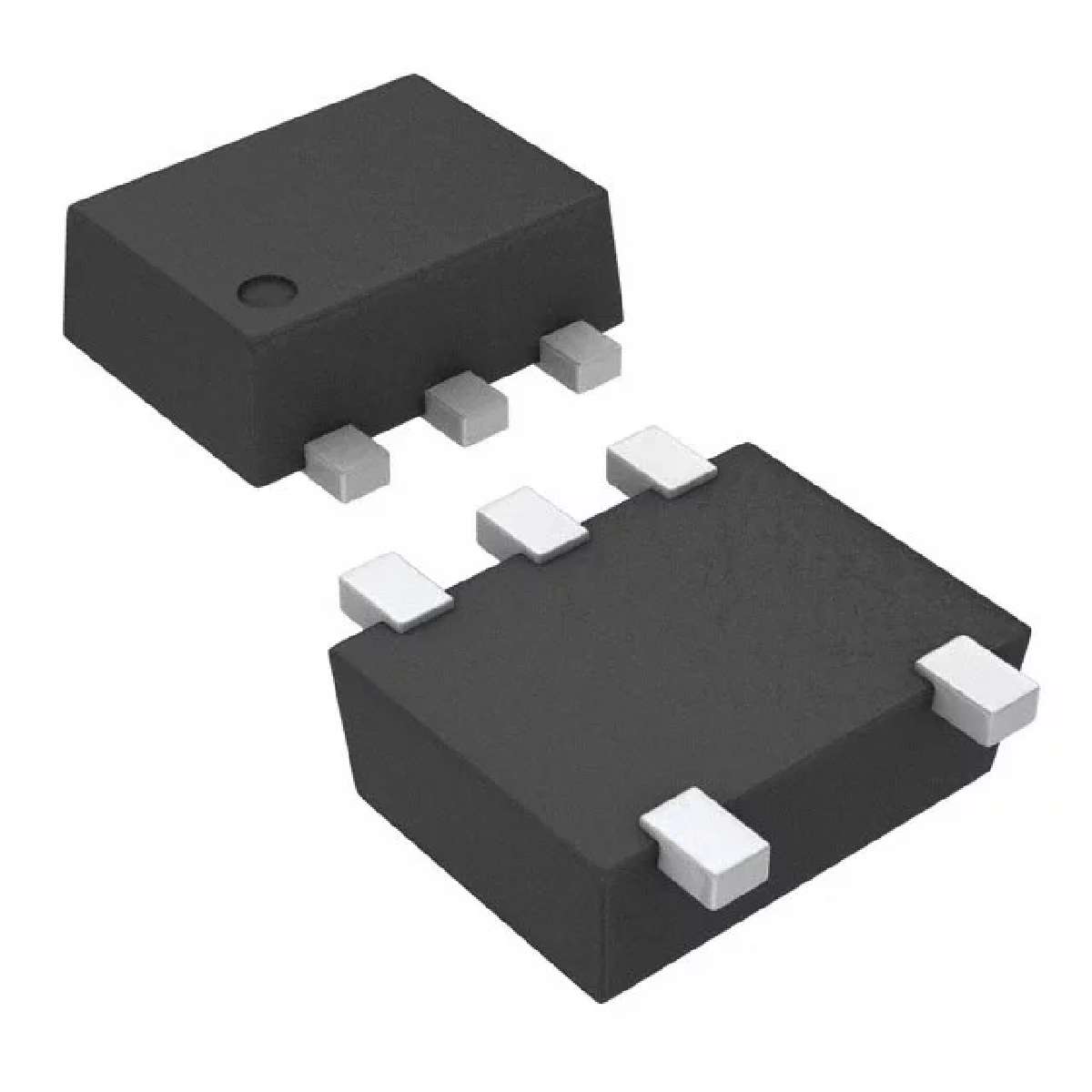

或门 IC 通道 - SOT-5
得捷:
IC GATE OR 1CH 2-INP SOT5
立创商城:
SN74AHCT1G32DRLR
德州仪器TI:
Single 2-input, 4.5-V to 5.5-V OR gate with TTL-compatible CMOS inputs
艾睿:
Texas Instruments brings you their latest SN74AHCT1G32DRLR logic gates, from which you can build and implement logical functions. This gate has a minimum operating temperature of -40 °C and a maximum of 125 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V.
Chip1Stop:
OR Gate 1-Element 2-IN CMOS 5-Pin SOT-553 T/R
Verical:
OR Gate 1-Element 2-IN CMOS Automotive 5-Pin SOT-553 T/R
DeviceMart:
IC GATE OR SINGLE 2INPUT SOT-5
电源电压DC 4.50V ~ 5.50V
输出接口数 1
输出电流 8.00 mA
电路数 1
位数 1
传送延迟时间 9.00 ns
电压波节 5.00 V
逻辑门个数 1
输出电流驱动 -1.00 mA
输入数 2
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
安装方式 Surface Mount
引脚数 5
封装 SOT-553-5
封装 SOT-553-5
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74AHCT1G32DRLR TI 德州仪器 | 当前型号 | 当前型号 |
74AHCT1G32DRLRG4 德州仪器 | 完全替代 | SN74AHCT1G32DRLR和74AHCT1G32DRLRG4的区别 |
