低功耗双2输入正或门 LOW-POWER DUAL 2-INPUT POSITIVE-OR GATE
logic gates from Texas Instruments are designed specifically to be interconnected and create a variety of different logic-based circuits. This gate has an operating temperature range of -40 °C to 85 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This device has a typical operating supply voltage of 1.8|2.5|3.3 V. Its minimum operating supply voltage of 0.8 V, while its maximum is 3.6 V.
电源电压DC 800mV ~ 3.60V
输出接口数 1
电路数 2
位数 2
传送延迟时间 4.30 ns
电压波节 3.30 V, 2.50 V
逻辑门个数 2
输出电流驱动 -1.00 mA
输入数 2
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 0.8V ~ 3.6V
安装方式 Surface Mount
引脚数 8

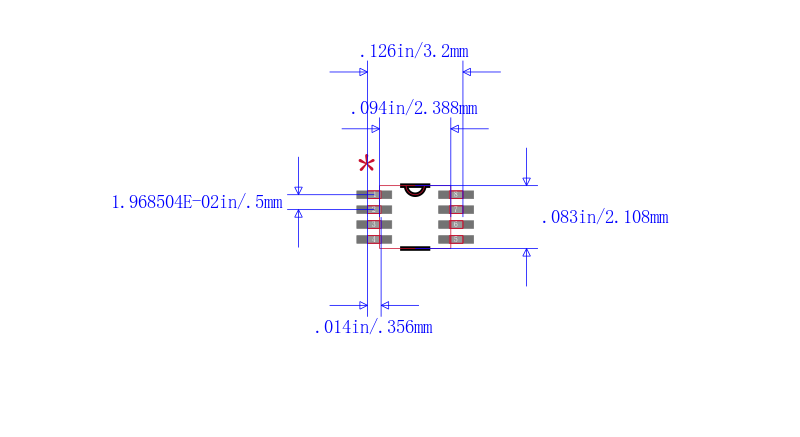

封装 VSSOP-8
封装 VSSOP-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74AUP2G32DCUR TI 德州仪器 | 当前型号 | 当前型号 |
SN74AUP2G32DQER 德州仪器 | 完全替代 | SN74AUP2G32DCUR和SN74AUP2G32DQER的区别 |
SN74AUP2G32YFPR 德州仪器 | 完全替代 | SN74AUP2G32DCUR和SN74AUP2G32YFPR的区别 |
SN74AUP2G32RSER 德州仪器 | 类似代替 | SN74AUP2G32DCUR和SN74AUP2G32RSER的区别 |
