逻辑门 AC Lo-Pwr Sgl 2-Inpt Positive & Gate
Perform multiple different logical operations through the use of Texas Instruments" logic gates. This gate has a minimum operating temperature of -40 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This device has a typical operating supply voltage of 1.8|2.5|3.3 V. Its minimum operating supply voltage of 0.8 V, while its maximum is 3.6 V.
电源电压DC 800mV ~ 3.60V
输出接口数 1
电路数 1
位数 1
传送延迟时间 4.30 ns
电压波节 3.30 V, 2.50 V
逻辑门个数 1
输出电流驱动 -1.00 mA
输入数 2
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 0.8V ~ 3.6V
安装方式 Surface Mount
引脚数 5

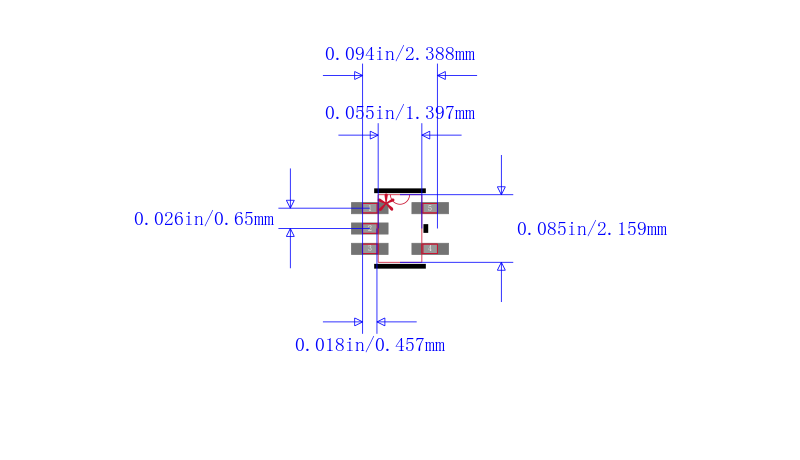

封装 SC-70-5
高度 1 mm
封装 SC-70-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74AUP1G08QDCKRQ1 TI 德州仪器 | 当前型号 | 当前型号 |
NL17SG08P5T5G 安森美 | 功能相似 | SN74AUP1G08QDCKRQ1和NL17SG08P5T5G的区别 |
