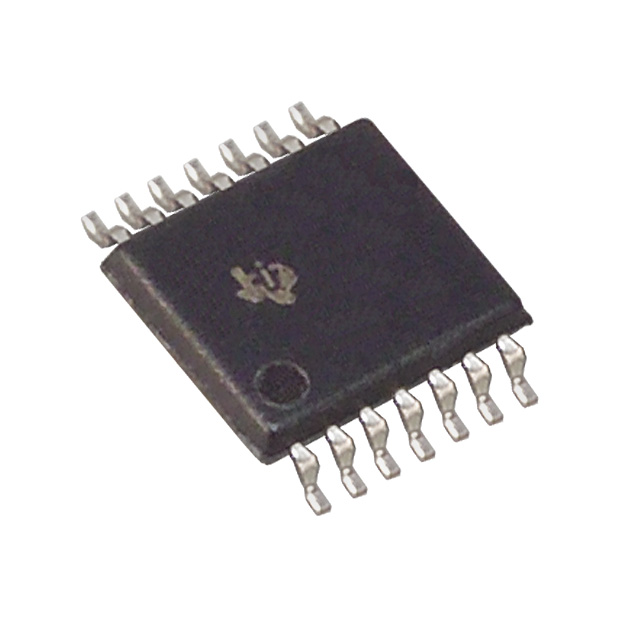

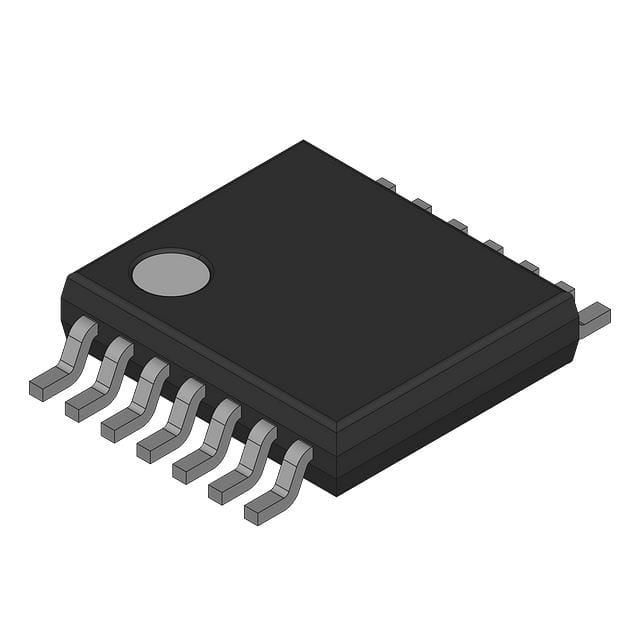

汽车类四路 2 输入正与门 14-TSSOP -40 to 125
Simplify your circuit through the use of Texas Instruments" logic gates, great for implementing basic logical functions. This gate has a minimum operating temperature of -40 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V.
电源电压DC 4.50V ~ 5.50V
输出接口数 1
电路数 4
位数 4
传送延迟时间 9.00 ns
电压波节 5.00 V
逻辑门个数 4
输出电流驱动 -1.00 mA
输入数 2
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
安装方式 Surface Mount
引脚数 14
封装 TSSOP-14
高度 1.05 mm
封装 TSSOP-14
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74AHCT00QPWRQ1 TI 德州仪器 | 当前型号 | 当前型号 |
SN74AHCT00QPWRG4Q1 德州仪器 | 完全替代 | SN74AHCT00QPWRQ1和SN74AHCT00QPWRG4Q1的区别 |
SN74AHCT00PWR 德州仪器 | 类似代替 | SN74AHCT00QPWRQ1和SN74AHCT00PWR的区别 |
SN74AHCT00PW 德州仪器 | 类似代替 | SN74AHCT00QPWRQ1和SN74AHCT00PW的区别 |
