单非门 SINGLE INVERTER GATE
This single inverter gate is operational at 0.8-V to 2.7-V VCC, but is designed specifically for 1.65-V to 1.95-V VCC operation.
The SN74AUC1G04 performs the Boolean function Y = A.
NanoFree™ package technology is a major breakthrough in IC packaging concepts, using the die as the package.
This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the ouput, preventing damaging current backflow through the device when it is powered down.
For more information about AUC Little Logic devices, see _Applications of Texas Instruments AUC Sub-1-V Little Logic Devices_, SCEA027.
电源电压DC 800mV min
输出电流 9 mA
电路数 1
位数 1
传送延迟时间 1.60 ns, 1.90 ns
电压波节 2.50 V
逻辑门个数 1
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 0.8V ~ 2.7V
电源电压Max 2.7 V
电源电压Min 0.8 V
安装方式 Surface Mount
引脚数 5

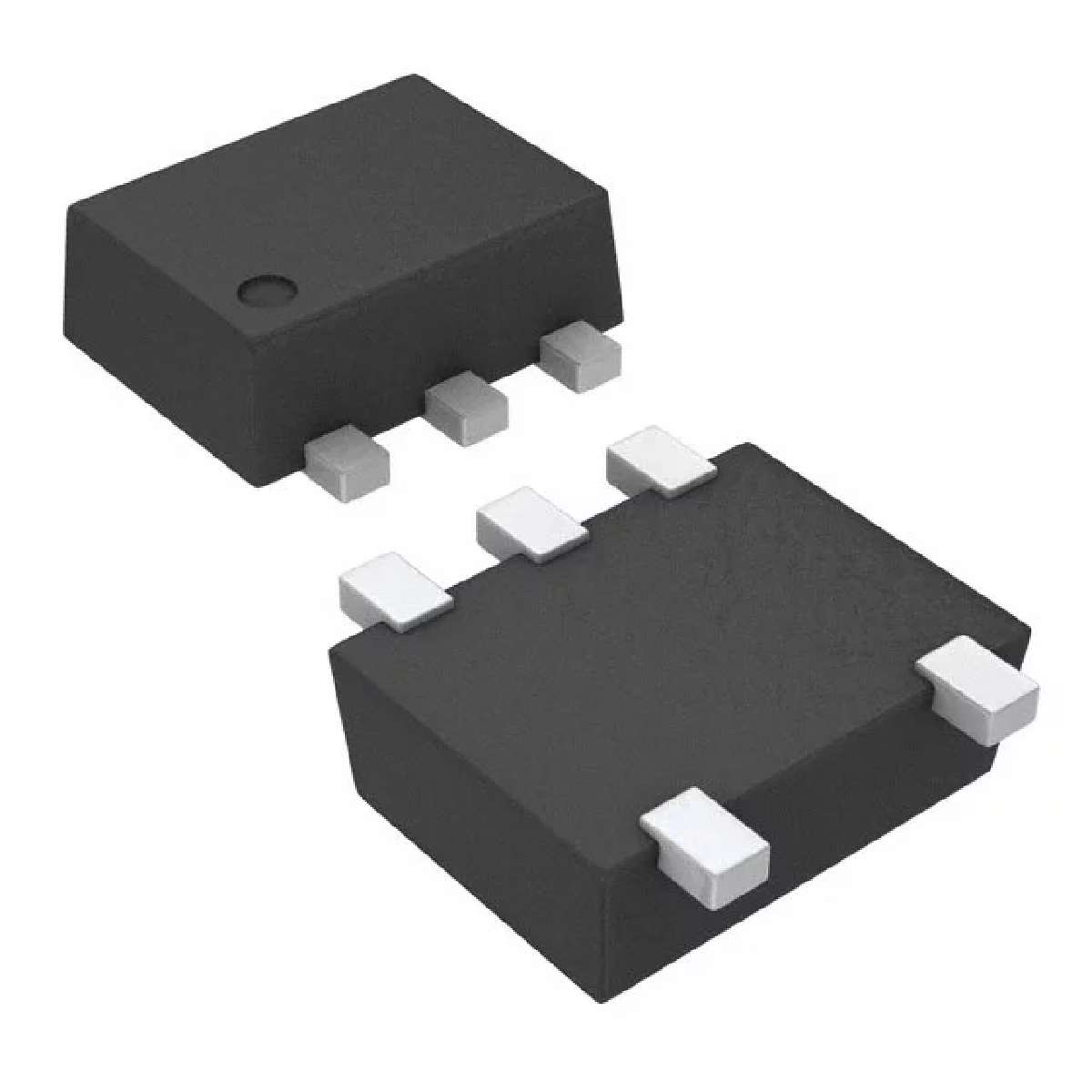

封装 SOT-553-5
封装 SOT-553-5
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74AUC1G04DRLR TI 德州仪器 | 当前型号 | 当前型号 |
SN74AUC1G04DRLRG4 德州仪器 | 类似代替 | SN74AUC1G04DRLR和SN74AUC1G04DRLRG4的区别 |
NL17SV04XV5T2G 安森美 | 功能相似 | SN74AUC1G04DRLR和NL17SV04XV5T2G的区别 |
NL17SV04XV5T2 安森美 | 功能相似 | SN74AUC1G04DRLR和NL17SV04XV5T2的区别 |
