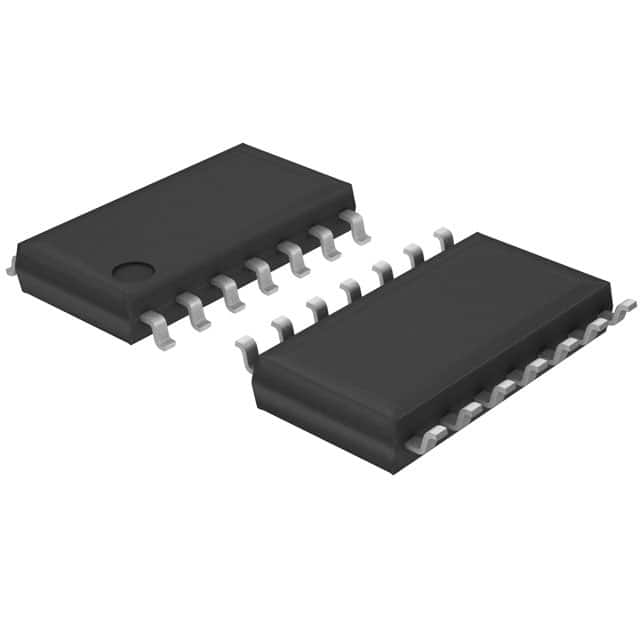

SN74LVC06ANSR

六反相缓冲器/带漏极开路输出驱动程序 HEX INVERTER BUFFERS/DRIVERS WITH OPEN-DRAIN OUTPUTS

DESCRIPON/ORDERING INFORMATION

These hex inverter buffers/drivers are designed for 1.65-V to 3.6-V VCC operation.

The outputs of the "LVC06A devices are open drain and can be connected to other open-drain outputs to implement active-low wired-OR or active-high wired-AND functions. The maximum sink current is 24 mA. Inputs can be driven from either 3.3-V or 5-V devices. This feature allows the use of these devices as translators in a mixed 3.3-V/5-V system environment.

FEATURES

• Operate From 1.65 V to 3.6 V

• Specified From –40°C to 85°C, –40°C to 125°C, and –55°C to 125°C

• Inputs and Open-Drain Outputs Accept Voltages up to 5.5 V

• Max tpd of 3.7 ns at 3.3 V

• Ioff Supports Partial-Power-Down Mode Operation

• Latch-Up Performance Exceeds 250 mA Per JESD 17
