四路2输入正与门 QUADRUPLE 2-INPUT POSITIVE-AND GATE
Build any logic circuits you can think of with this logic gate by Texas Instruments. This gate has an operating temperature range of -40 °C to 85 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This device has a typical operating supply voltage of 1.8|2.5|3.3 V. Its minimum operating supply voltage of 1.65 V, while its maximum is 3.6 V.
电源电压DC 1.65V ~ 3.60V
输出接口数 1
输出电流 24.0 mA
电路数 4
位数 4
传送延迟时间 2.90 ns
电压波节 3.30 V, 2.70 V, 2.50 V, 1.80 V
逻辑门个数 4
输出电流驱动 -1.00 mA
输入数 2
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 1.65V ~ 3.6V
安装方式 Surface Mount
引脚数 14

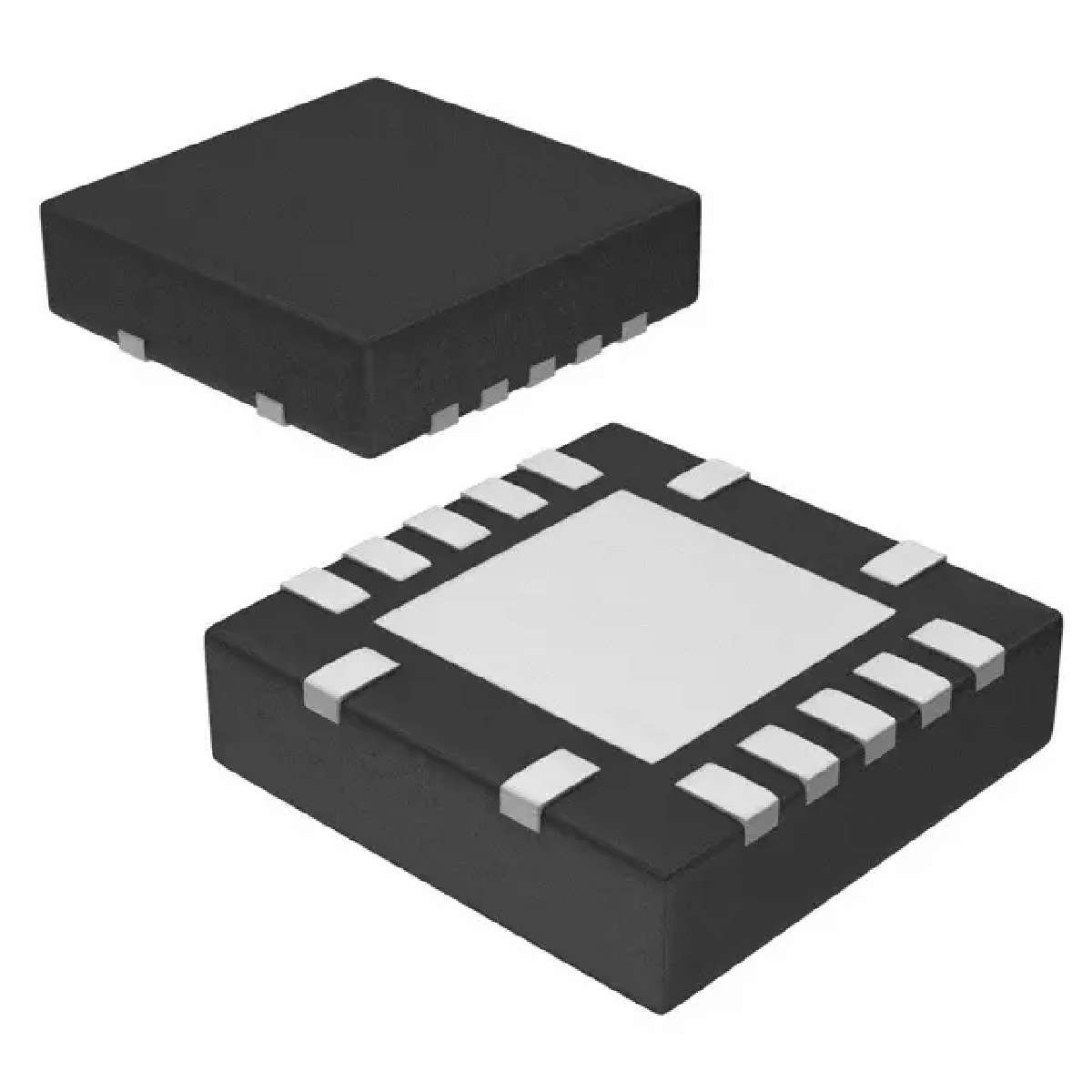

封装 VQFN-14
高度 0.95 mm
封装 VQFN-14
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74ALVC08RGYR TI 德州仪器 | 当前型号 | 当前型号 |
SN74ALVC08RGYRG4 德州仪器 | 完全替代 | SN74ALVC08RGYR和SN74ALVC08RGYRG4的区别 |
