单路2输入正或非门 SINGLE 2-INPUT POSITIVE-NOR GATE
Build any logic circuits you can think of with this logic gate by Texas Instruments. This gate has an operating temperature range of -40 °C to 85 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This device has a typical operating supply voltage of 1.8|2.5 V. Its minimum operating supply voltage of 0.8 V, while its maximum is 2.7 V.
电源电压DC 2.70 V
输出电流 9.00 mA
电路数 1
位数 1
传送延迟时间 1.70 ns
电压波节 2.50 V
逻辑门个数 1
输出电流驱动 8.00 mA
输入数 2
工作温度Max 85 ℃
工作温度Min 40 ℃
电源电压 0.8V ~ 2.7V
电源电压Max 2.7 V
电源电压Min 0.8 V
安装方式 Surface Mount
引脚数 5

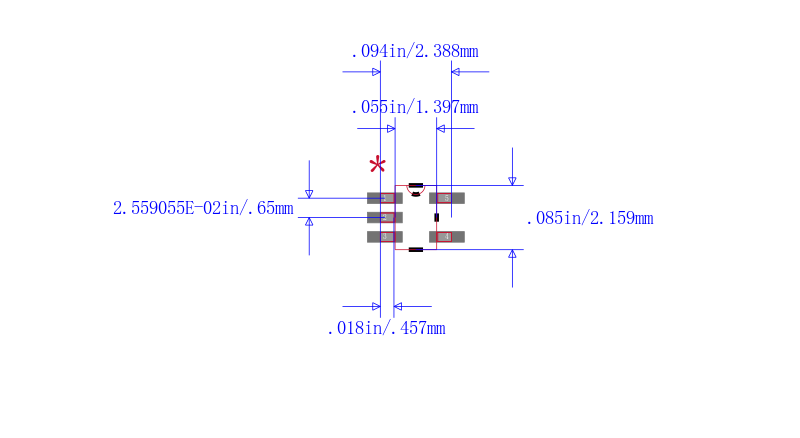

封装 SC-70-5
长度 2 mm
宽度 1.25 mm
高度 0.9 mm
封装 SC-70-5
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74AUC1G02DCKR TI 德州仪器 | 当前型号 | 当前型号 |
SN74AUC1G02DCKRE4 德州仪器 | 完全替代 | SN74AUC1G02DCKR和SN74AUC1G02DCKRE4的区别 |
SN74AUC1G02DCKRG4 德州仪器 | 功能相似 | SN74AUC1G02DCKR和SN74AUC1G02DCKRG4的区别 |
