低功耗单路2输入正或非门 LOW-POWER SINGLE 2-INPUT POSITIVE-NOR GATE
Simplify your circuit through the use of Texas Instruments" logic gates, great for implementing basic logical functions. This gate has an operating temperature range of -40 °C to 85 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This device has a typical operating supply voltage of 1.8|2.5|3.3 V. Its minimum operating supply voltage of 0.8 V, while its maximum is 3.6 V.
电源电压DC 3.30 V
输出接口数 1
电路数 1
位数 1
传送延迟时间 6.40 ns
逻辑门个数 1
输入数 2
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 0.8V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 0.8 V
安装方式 Surface Mount
引脚数 5

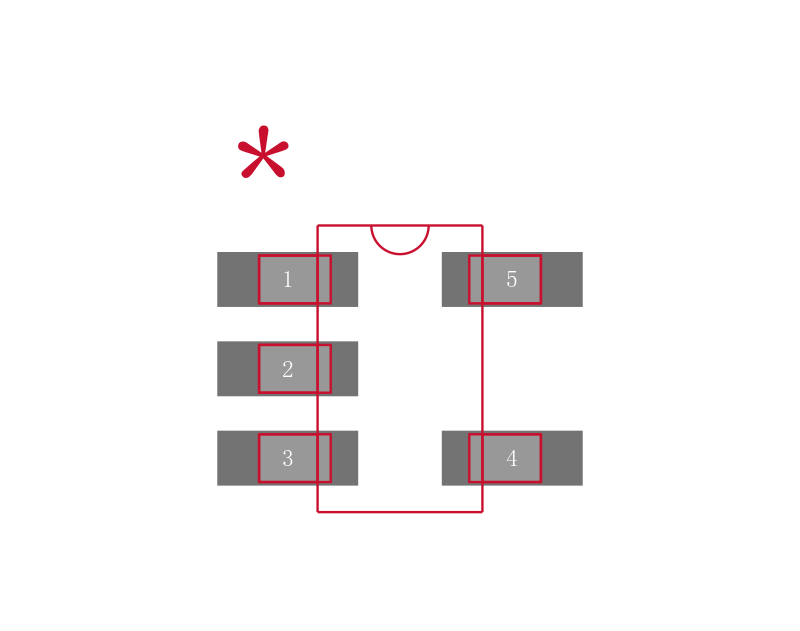

封装 SOT-23-5
长度 2.9 mm
宽度 1.6 mm
高度 1.15 mm
封装 SOT-23-5
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74AUP1G02DBVR TI 德州仪器 | 当前型号 | 当前型号 |
SN74AUP1G02DBVRG4 德州仪器 | 完全替代 | SN74AUP1G02DBVR和SN74AUP1G02DBVRG4的区别 |
SN74AUP1G02DBVRE4 德州仪器 | 完全替代 | SN74AUP1G02DBVR和SN74AUP1G02DBVRE4的区别 |
SN74AUP1G02DBVT 德州仪器 | 类似代替 | SN74AUP1G02DBVR和SN74AUP1G02DBVT的区别 |
