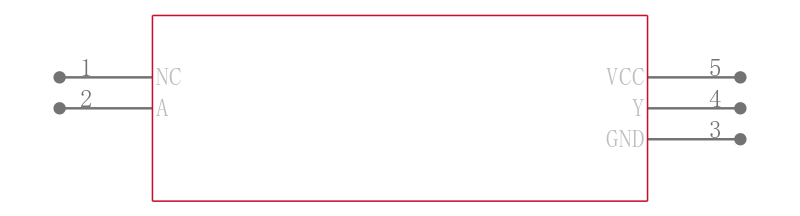

SN74AUC1G14DCKR

单施密特触发器逆变器 SINGLE SCHMITT TRIGGER INVERTER

逻辑类型Logic Type| 反相施密特触发器 Inverting Schmitt trigger \---|--- 电路数Number of Circuits| 1 输入数Number of Inputs| 1 电源电压VccVoltage - Supply| 0.8v~2.7v 静态电流IqCurrent - Quiescent Max| 10uA 输出高，低电平电流Current - Output High, Low| -9mA,9mA 低逻辑电平Logic Level - Low| 0.7v 高逻辑电平Logic Level - High| 1.7v 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL| 0.5nS @ 2.5v 30pF Description & Applications| SINGLE SCHMITT-TRIGGER INVERTER ；Available in the Texas Instruments • Low Power Consumption, 10-µA Max ICC NanoFree™ Package • ±8-mA Output Drive at 1.8 V • Optimized for 1.8-V Operation and Is 3.6-V I/O • Latch-Up Performance Exceeds 100 mA Per Tolerant to Support Mixed-Mode Signal JESD 78, Class II Operation • ESD Protection Exceeds JESD 22 • Ioff Supports Partial-Power-Down Mode – 2000-V Human-Body Model A114-A Operation – 200-V Machine Model A115-A • Sub-1-V Operable – 1000-V Charged-Device Model C101 • Max tpd of 2.4 ns at 1.8 V 描述与应用| 施密特触发器逆变器;低功耗，10μA最大ICC NanoFree™包装•±8 mA输出驱动在1.8 V •1.8-V操作优化，并为3.6-VI/ O•闭锁性能超过100 mA每 容错支持混合模式信号JESD78，II类操作 •ESD保护超过JESD22 •IOFF支持部分掉电模式 - 2000-V人体模型（A114-A）操作 - 200-V机型号（A115-A） - 1000-V带电器件模型（C101） •最大TPD为2.4 ns在1.8 V
