四路2输入正与门 QUADRUPLE 2-INPUT POSITIVE-AND GATES
与门 IC 通道 - 14-SOP
得捷:
IC GATE AND 4CH 2-INP 14SOP
立创商城:
SN74AC08NSR
德州仪器TI:
4-ch, 2-input, 2-V to 6-V AND gates
贸泽:
Logic Gates Quadruple 2-Input Positive-AND Gates
艾睿:
Thanks to Texas Instruments and their SN74AC08NSR logic gates, you can simplify your circuit down to a fundamental level. This gate has a minimum operating temperature of -40 °C and a maximum of 85 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This device has a typical operating supply voltage of 2.5|3.3|5 V. Its minimum operating supply voltage of 2 V, while its maximum is 6 V.
Chip1Stop:
AND Gate 4-Element 2-IN CMOS 14-Pin SOP T/R
Verical:
AND Gate 4-Element 2-IN CMOS 14-Pin SOP T/R
Win Source:
IC GATE AND 4CH 2-INP 14-SO
电源电压DC 2.00V ~ 6.00V
输出接口数 1
输出电流 24.0 mA
电路数 4
位数 4
传送延迟时间 10.0 ns
电压波节 5.00 V, 3.30 V
逻辑门个数 4
输出电流驱动 -1.00 mA
输入数 2
工作温度Max 85 ℃
工作温度Min 40 ℃
电源电压 2V ~ 6V
电源电压Max 6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 14

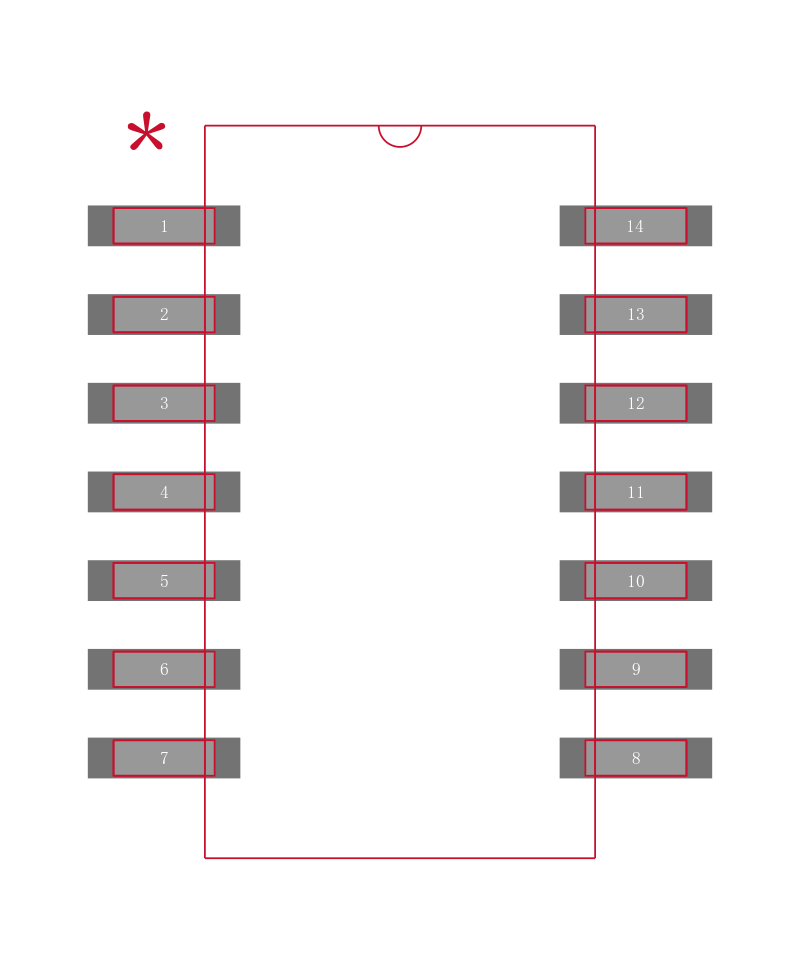

封装 SOP-14
长度 10.3 mm
宽度 5.3 mm
高度 1.95 mm
封装 SOP-14
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74AC08NSR TI 德州仪器 | 当前型号 | 当前型号 |
SN74AC08NSRG4 德州仪器 | 完全替代 | SN74AC08NSR和SN74AC08NSRG4的区别 |
SN74AC08MDREP 德州仪器 | 类似代替 | SN74AC08NSR和SN74AC08MDREP的区别 |
SN74AC08QDRG4Q1 德州仪器 | 类似代替 | SN74AC08NSR和SN74AC08QDRG4Q1的区别 |
