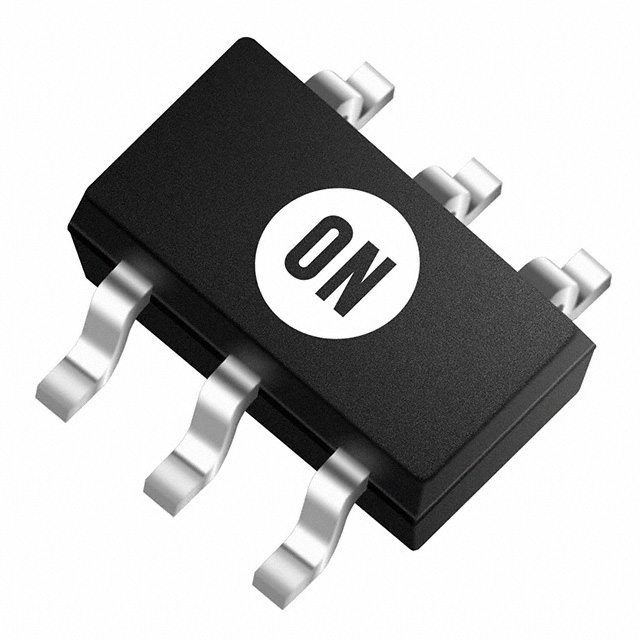

ESD 抑制器/TVS 二极管 SC-88 6 EUT DUAL CPR PFH
This quad voltage suppressor is designed for applications requiring transient overvoltage protection capability. It is intended for use in voltage and ESD sensitive equipment such as computers, printers, business machines, communication systems, medical equipment, and other applications. Its quad junction common anode design protects four separate lines using only one package. These devices are ideal for situations where board space is at a premium.
Features
---
|
Mechanical Characteristics:
工作电压 5 V
电容 40 pF
击穿电压 6.8 V
耗散功率 0.385 W
测试电流 5 mA
最大反向击穿电压 7.2 V
脉冲峰值功率 75 W
最小反向击穿电压 6.4 V
工作温度Max 150 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 150℃
耗散功率Max 385 mW
安装方式 Surface Mount
引脚数 6
封装 SOT-363-6
高度 0.9 mm
封装 SOT-363-6
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 汽车级
RoHS标准 RoHS Compliant
含铅标准 Lead Free
