单路2输入正与非门 SINGLE 2-INPUT POSITIVE-NAND GATE
Description
This single 2-input positive-NAND gate is designed for 1.65-V to 5.5-V VCC operation.
Features
• Available in the Ultra Small 0.64-mm2 Package DPW With 0.5-mm Pitch
• Supports 5-V VCC Operation
• Inputs Accept Voltages to 5.5 V
• Provides Down Translation to VCC
• Max tpd of 3.8 ns at 3.3 V
• Low Power Consumption, 10-μA Max ICC
• ±24-mA Output Drive at 3.3 V
• Ioff Supports Live Insertion, Partial-Power-Down Mode, and Back Drive Protection
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Protection Exceeds JESD 22
– 2000-V Human-Body Model A114-A
– 1000-V Charged-Device Model C101
Applications
• AV Receiver
• Audio Dock: Portable
• Blu-ray Player and Home Theater
• Embedded PC
• MP3 Player/Recorder Portable Audio
• Personal Digital Assistant PDA
• Power: Telecom/Server AC/DC Supply: Single Controller: Analog and Digital
• Solid State Drive SSD: Client and Enterprise
• TV: LCD/Digital and High-Definition HDTV
• Tablet: Enterprise
• Video Analytics: Server
• Wireless Headset, Keyboard, and Mouse
电源电压DC 5.00 V
输出接口数 1
电路数 1
位数 1
传送延迟时间 4.00 ns
逻辑门个数 1
输入数 2
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 1.65V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 1.65 V
安装方式 Surface Mount
引脚数 5

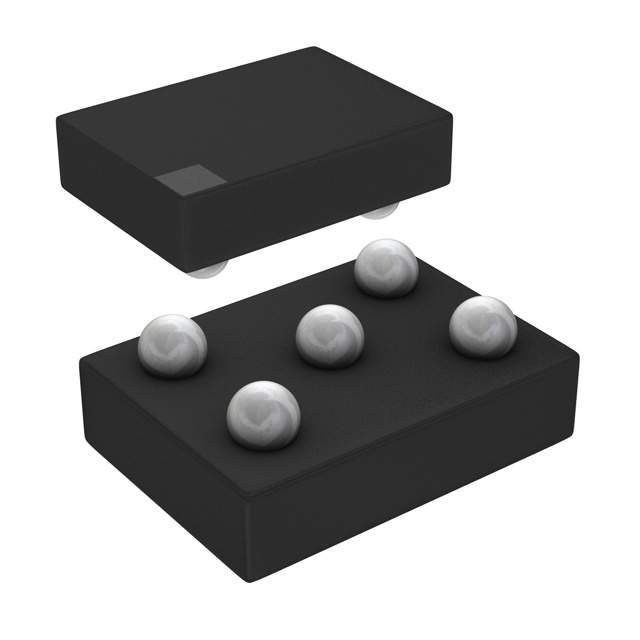

封装 DSBGA-5
长度 1.4 mm
宽度 0.9 mm
高度 0.3 mm
封装 DSBGA-5
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74LVC1G00YZPR TI 德州仪器 | 当前型号 | 当前型号 |
SN74LVC1G00YZAR 德州仪器 | 完全替代 | SN74LVC1G00YZPR和SN74LVC1G00YZAR的区别 |
SN74LVC1G00YEPR 德州仪器 | 类似代替 | SN74LVC1G00YZPR和SN74LVC1G00YEPR的区别 |
SN74LVC1G00YEAR 德州仪器 | 功能相似 | SN74LVC1G00YZPR和SN74LVC1G00YEAR的区别 |
