SN74AUP1G08DPWR

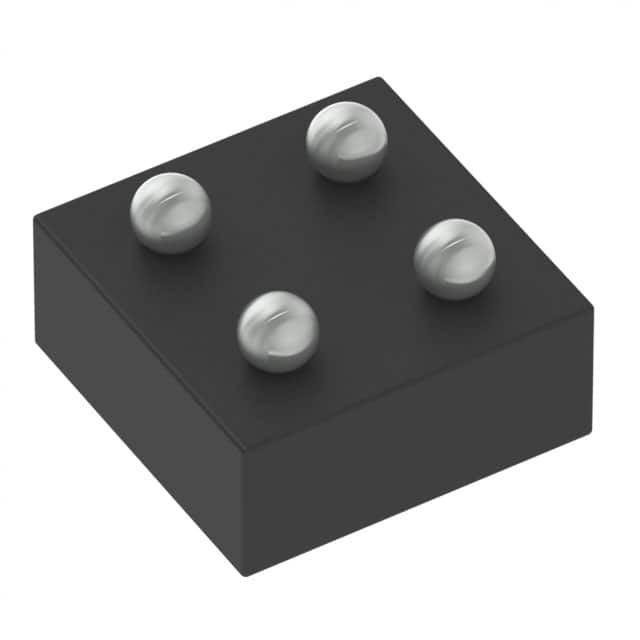

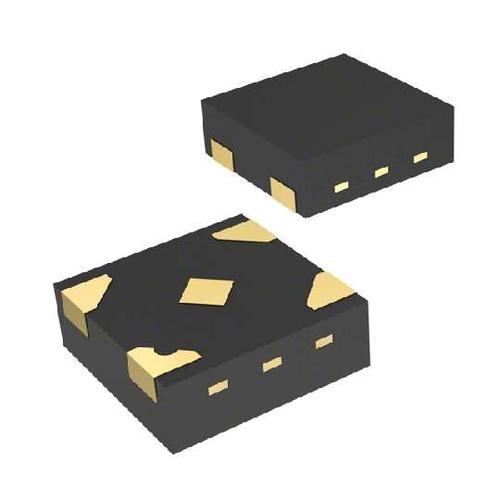

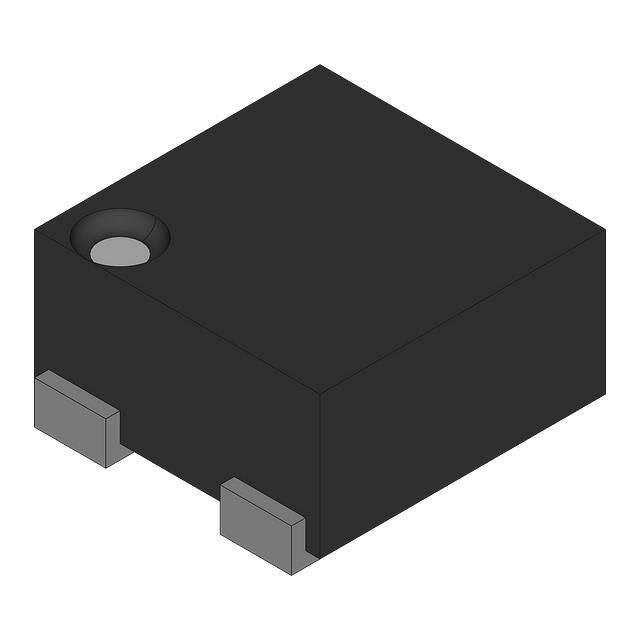

SN74AUP1G08DPWR图片1
SN74AUP1G08DPWR图片2
SN74AUP1G08DPWR图片3
SN74AUP1G08DPWR图片4
SN74AUP1G08DPWR图片5
SN74AUP1G08DPWR图片6
SN74AUP1G08DPWR图片7
SN74AUP1G08DPWR图片8
SN74AUP1G08DPWR概述

低功耗单路 2 输入正与门 5-X2SON -40 to 85

与门 IC 1 通道 - 4-X2SON(0.8x0.8)


得捷:
IC GATE AND 1CH 2-INP 4X2SON


立创商城:
SN74AUP1G08DPWR


德州仪器TI:
Single 2-input, 0.8-V to 3.6-V low power AND gate


贸泽:
Logic Gates Low-Pwr Sgl 2-Inp Pos-AND Gate


艾睿:
Texas Instruments brings you their latest SN74AUP1G08DPWR logic gates, from which you can build and implement logical functions. This gate has an operating temperature range of -40 °C to 85 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This device has a typical operating supply voltage of 1.8|2.5|3.3 V. Its minimum operating supply voltage of 0.8 V, while its maximum is 3.6 V.


安富利:
AND Gate 2-Element 2-IN CMOS 4-Pin X2SON T/R


Verical:
AND Gate 1-Element 2-IN CMOS 4-Pin X2SON EP T/R


Newark:
# TEXAS INSTRUMENTS  SN74AUP1G08DPWR  AND Gate, 74AUP1G08, 2 Input, 800 mV to 3.6 V, X2SON-4


Win Source:
IC GATE AND 1CH 2-INP 4X2SON / AND Gate IC 1 Channel 4-X2SON 0.8x0.8


SN74AUP1G08DPWR中文资料参数规格
技术参数

电源电压DC 3.60V max

输出接口数 1

输出电压 3.6 V

输出电流 20 mA

电路数 1

位数 1

输入数 2

工作温度Max 85 ℃

工作温度Min -40 ℃

电源电压 0.8V ~ 3.6V

电源电压Max 3.6 V

电源电压Min 0.8 V

封装参数

安装方式 Surface Mount

引脚数 4

封装 X2SON-4

外形尺寸

封装 X2SON-4

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC版本 2015/06/15

数据手册

SN74AUP1G08DPWR引脚图与封装图

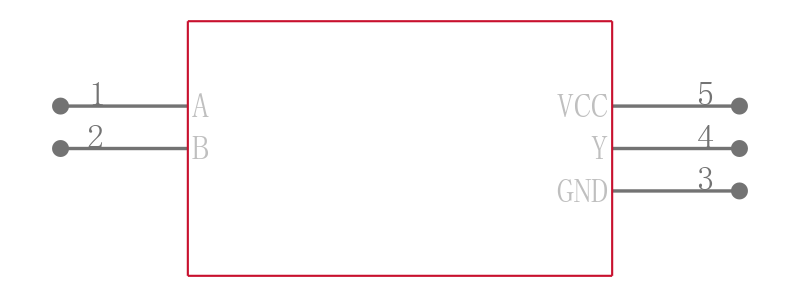

SN74AUP1G08DPWR引脚图

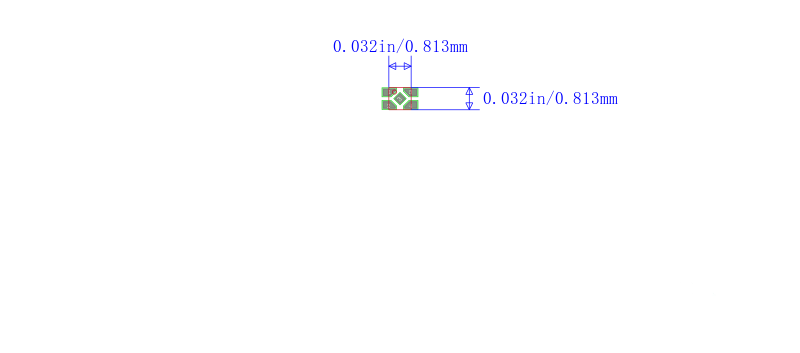

SN74AUP1G08DPWR封装图

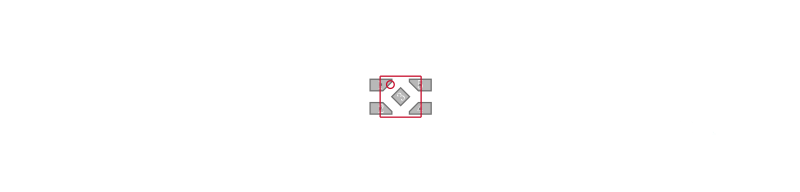

SN74AUP1G08DPWR封装焊盘图
在线购买SN74AUP1G08DPWR
型号: SN74AUP1G08DPWR
制造商: TI 德州仪器
描述:低功耗单路 2 输入正与门 5-X2SON -40 to 85
