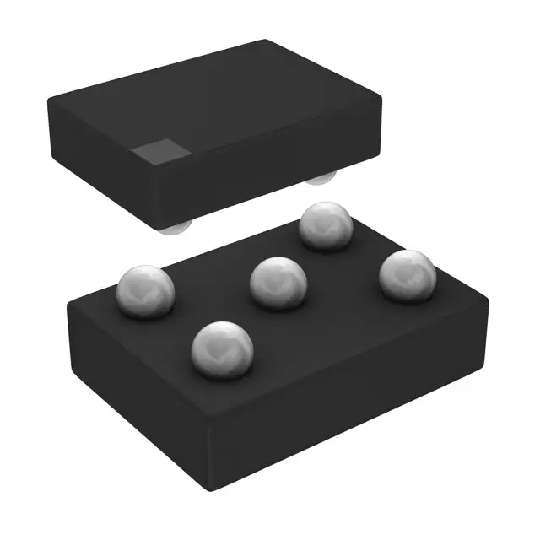

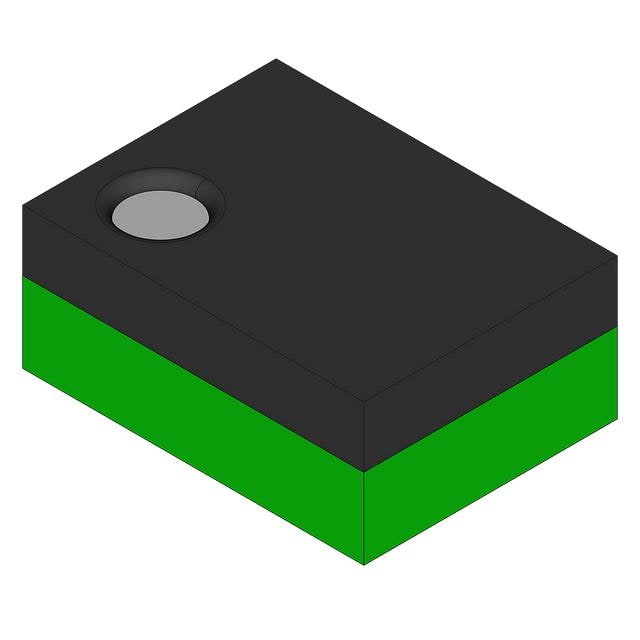

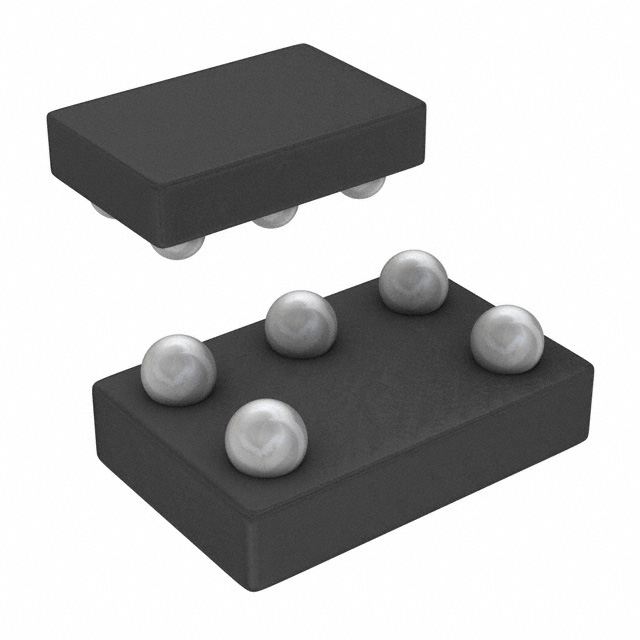

SN74AUC1G02YZPR图片1
SN74AUC1G02YZPR图片2
SN74AUC1G02YZPR图片3
SN74AUC1G02YZPR图片4
SN74AUC1G02YZPR图片5
SN74AUC1G02YZPR图片6
SN74AUC1G02YZPR图片7
SN74AUC1G02YZPR图片8
SN74AUC1G02YZPR概述

单路2输入正或非门 SINGLE 2-INPUT POSITIVE-NOR GATE

NOR Gate IC 1 Channel 5-DSBGA 1.4x0.9


得捷:
IC GATE NOR 1CH 2-INP 5DSBGA


立创商城:
SN74AUC1G02YZPR


德州仪器TI:
Single 2-input, 0.8-V to 2.7-V high speed NOR gate


贸泽:
逻辑门 SNGL 2Input Pos NOR Gate


艾睿:
Build any logic circuits you can think of with this SN74AUC1G02YZPR logic gate by Texas Instruments. This gate has an operating temperature range of -40 °C to 85 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This device has a typical operating supply voltage of 1.8|2.5 V. Its minimum operating supply voltage of 0.8 V, while its maximum is 2.7 V.


安富利:
NOR Gate 1-Element 2-IN CMOS 5-Pin DSBGA T/R


Chip1Stop:
NOR Gate 1-Element 2-IN CMOS 5-Pin DSBGA T/R


Verical:
NOR Gate 1-Element 2-IN CMOS 5-Pin DSBGA T/R


Win Source:
NOR Gate IC 1 Channel 5-DSBGA


SN74AUC1G02YZPR中文资料参数规格
技术参数

输出接口数 1

输出电流 9.00 mA

电路数 1

位数 1

传送延迟时间 1.70 ns

电压波节 2.50 V

逻辑门个数 1

输出电流驱动 8.00 mA

输入数 2

工作温度Max 85 ℃

工作温度Min -40 ℃

电源电压 0.8V ~ 2.7V

封装参数

安装方式 Surface Mount

引脚数 5

封装 DSBGA-5

外形尺寸

长度 1.4 mm

宽度 0.9 mm

高度 0.3 mm

封装 DSBGA-5

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

SN74AUC1G02YZPR引脚图与封装图

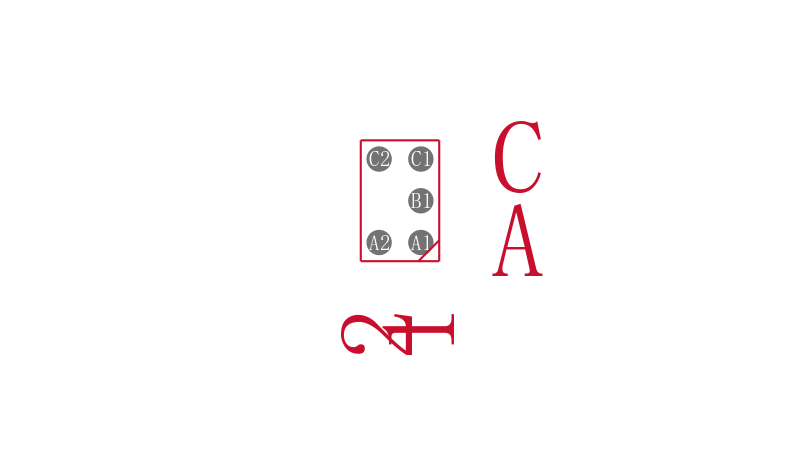

SN74AUC1G02YZPR引脚图
SN74AUC1G02YZPR封装图
SN74AUC1G02YZPR封装焊盘图
在线购买SN74AUC1G02YZPR
型号: SN74AUC1G02YZPR
制造商: TI 德州仪器
描述:单路2输入正或非门 SINGLE 2-INPUT POSITIVE-NOR GATE
替代型号SN74AUC1G02YZPR
型号/品牌 代替类型 替代型号对比

SN74AUC1G02YZPR

TI 德州仪器

当前型号

当前型号

SN74AUC1G02YEPR

德州仪器

完全替代

SN74AUC1G02YZPR和SN74AUC1G02YEPR的区别

SN74AUC1G02YEAR

德州仪器

完全替代

SN74AUC1G02YZPR和SN74AUC1G02YEAR的区别

SN74AUC1G02YZAR

德州仪器

类似代替

SN74AUC1G02YZPR和SN74AUC1G02YZAR的区别
