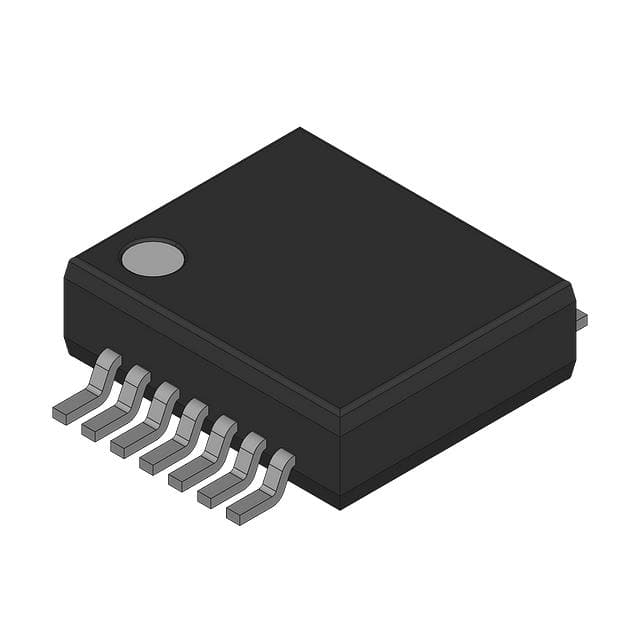

SN74ACT04DBR图片1

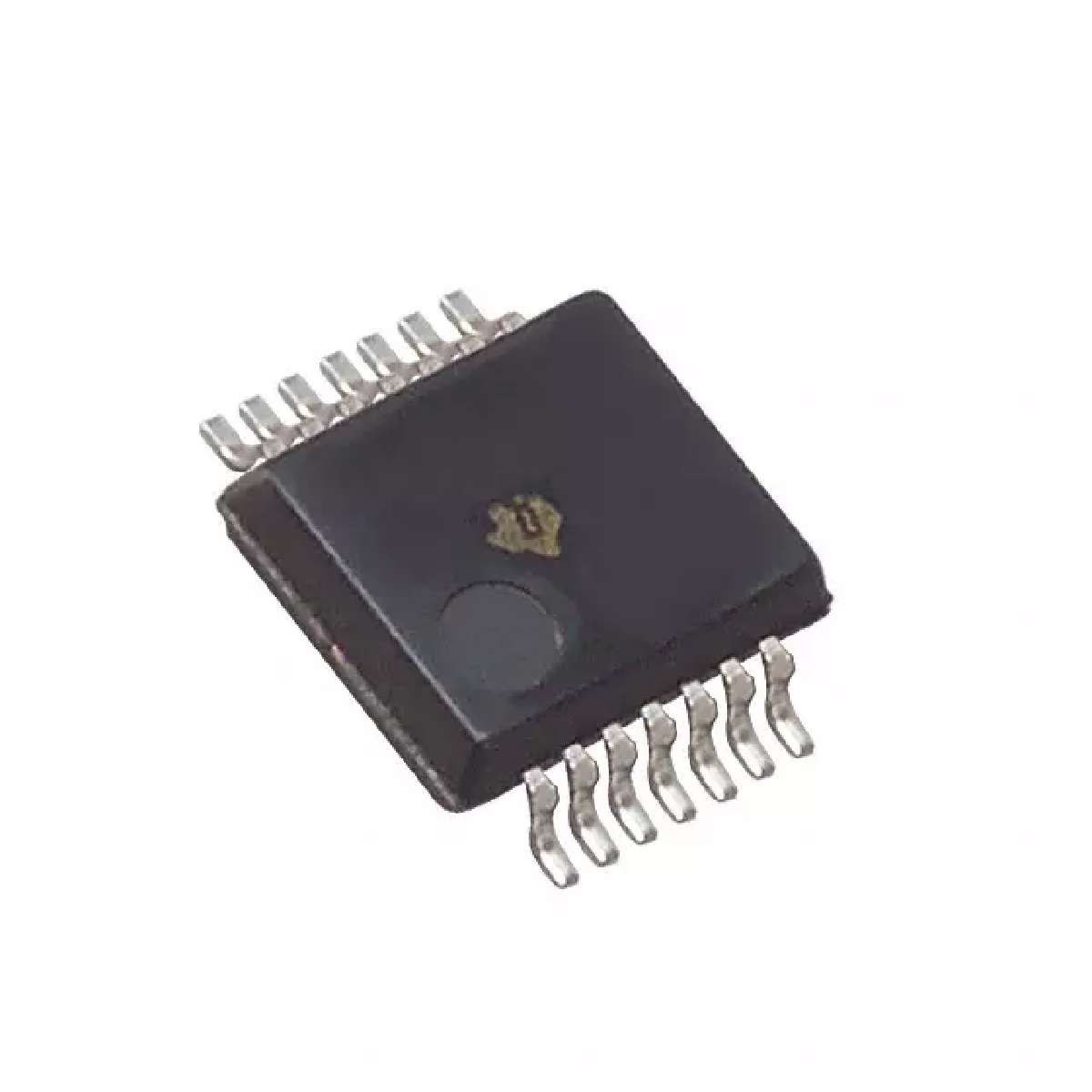

SN74ACT04DBR图片2
SN74ACT04DBR图片3
SN74ACT04DBR图片4
SN74ACT04DBR图片5
SN74ACT04DBR图片6
SN74ACT04DBR图片7
SN74ACT04DBR图片8
SN74ACT04DBR图片9
SN74ACT04DBR图片10
SN74ACT04DBR图片11
SN74ACT04DBR图片12
SN74ACT04DBR图片13
SN74ACT04DBR概述

六路反向器 HEX INVERTERS

description/ordering information

The ‘ACT04 devices contain six independent inverters. The devices perform the Boolean function Y = A.

4.5-V to 5.5-V VCCOperation

Inputs Accept Voltages to 5.5 V

Max tpd of 8.5 ns at 5 V

Inputs Are TTL-Voltage Compatible


得捷:
IC INVERTER 6CH 1-INP 14SSOP


立创商城:
SN74ACT04DBR


德州仪器TI:
6-ch, 4.5-V to 5.5-V inverters with TTL-compatible CMOS inputs


艾睿:
SN74ACT04DBR inverting Schmitt triggers from Texas Instruments are designed specifically to clean up noisy analog signals and convert them into more manageable digital signals. This inverting Schmitt trigger has a minimum operating temperature of -40 °C and a maximum of 85 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V.


Chip1Stop:
Inverter 6-Element CMOS 14-Pin SSOP T/R


Verical:
Inverter 6-Element CMOS 14-Pin SSOP T/R


Win Source:
Inverter IC 6 Channel 14-SSOP


SN74ACT04DBR中文资料参数规格
技术参数

电源电压DC 4.50V ~ 5.50V

输出电流 24.0 mA

电路数 6

位数 6

传送延迟时间 8.50 ns

电压波节 5.00 V

逻辑门个数 6

输出电流驱动 -1.00 mA

输入数 6

工作温度Max 85 ℃

工作温度Min -40 ℃

电源电压 4.5V ~ 5.5V

封装参数

安装方式 Surface Mount

引脚数 14

封装 SSOP-14

外形尺寸

封装 SSOP-14

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

SN74ACT04DBR引脚图与封装图
SN74ACT04DBR引脚图
SN74ACT04DBR封装图
SN74ACT04DBR封装焊盘图
在线购买SN74ACT04DBR
型号: SN74ACT04DBR
制造商: TI 德州仪器
描述:六路反向器 HEX INVERTERS
替代型号SN74ACT04DBR
型号/品牌 代替类型 替代型号对比

SN74ACT04DBR

TI 德州仪器

当前型号

当前型号

SN74ACT04DBRE4

德州仪器

完全替代

SN74ACT04DBR和SN74ACT04DBRE4的区别

SN74ACT04DBLE

德州仪器

完全替代

SN74ACT04DBR和SN74ACT04DBLE的区别

SN74ACT04DBRG4

德州仪器

类似代替

SN74ACT04DBR和SN74ACT04DBRG4的区别
