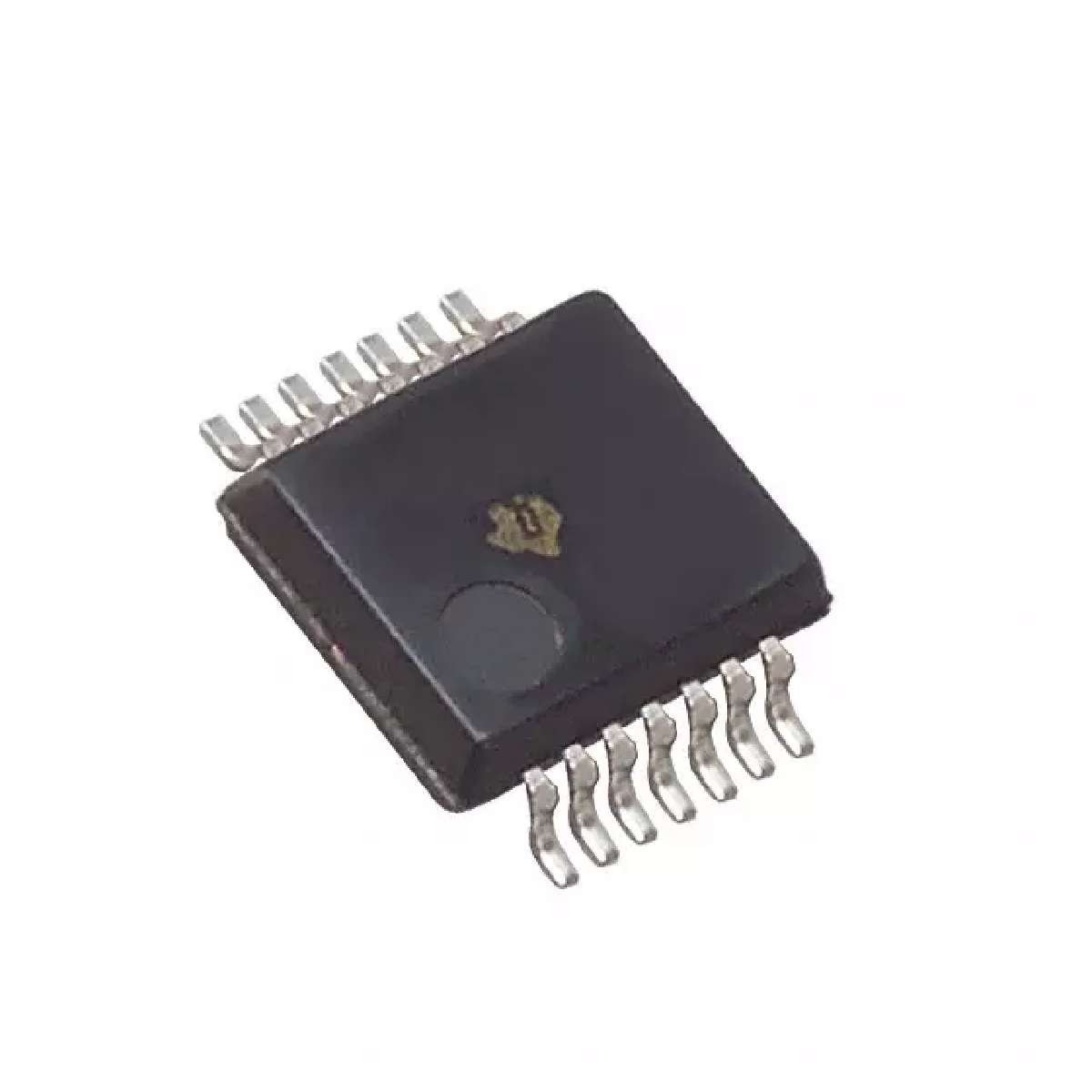

四路2输入正与非门 QUADRUPLE 2-INPUT POSITIVE-NAND GATES
description/ordering information
The ‘ACT00 devices contain four independent 2-input NAND gates. Each gate performs the Boolean function of Y = A • B or Y = A + B in positive logic.
• 4.5-V to 5.5-V VCC Operation
• Inputs Accept Voltages to 5.5 V
• Max tpd of 8 ns at 5 V
• Inputs Are TTL-Voltage Compatible
得捷:
IC GATE NAND 4CH 2-INP 14SSOP
立创商城:
SN74ACT00DBR
德州仪器TI:
4-ch, 2-input, 4.5-V to 5.5-V NAND gates with TTL-compatible CMOS inputs
艾睿:
NAND Gate 4-Element 2-IN CMOS 14-Pin SSOP T/R
安富利:
The ’ACT00 devices contain four independent 2-input NAND gates. Each gate performs the Boolean function of Y = A • B\ or Y = A\ + B\ in positive logic.
Chip1Stop:
NAND Gate 4-Element 2-IN CMOS 14-Pin SSOP T/R
Verical:
NAND Gate 4-Element 2-IN CMOS 14-Pin SSOP T/R
AMEYA360:
IC GATE NAND 4CH 2-INP 14-SSOP
电源电压DC 4.50V ~ 5.50V
输出接口数 1
输出电流 24.0 mA
电路数 4
位数 4
传送延迟时间 9.00 ns
电压波节 5.00 V
逻辑门个数 4
输出电流驱动 -1.00 mA
输入数 2
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
安装方式 Surface Mount
引脚数 14
封装 SSOP-14
封装 SSOP-14
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74ACT00DBR TI 德州仪器 | 当前型号 | 当前型号 |
SN74ACT00DBRG4 德州仪器 | 完全替代 | SN74ACT00DBR和SN74ACT00DBRG4的区别 |
SN74ACT00DBRE4 德州仪器 | 完全替代 | SN74ACT00DBR和SN74ACT00DBRE4的区别 |
SN74ACT00DBLE 德州仪器 | 完全替代 | SN74ACT00DBR和SN74ACT00DBLE的区别 |
