汽车类四路 2 输入异或门 14-TSSOP -40 to 125
The SN74LVC86A-Q1 quadruple 2-input exclusive-OR gate is designed for 2.7-V to 3.6-V VCC operation.
The device performs the Boolean function Y = A + B or Y = A\ B\ in positive logic.
A common application is as a true/complement element. If one of the inputs is low, the other input is reproduced in true form at the output. If one of the inputs is high, the signal on the other input is reproduced inverted at the output.
Inputs can be driven from either 3.3-V or 5-V devices. This feature allows the use of this device as a translator in a mixed 3.3-V/5-V system environment.
电源电压DC 2.00V ~ 3.60V
输出接口数 1
电路数 4
位数 4
传送延迟时间 4.60 ns
电压波节 3.30 V, 2.70 V
逻辑门个数 4
输出电流驱动 -1.00 mA
输入数 2
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 2V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 2 V
安装方式 Surface Mount

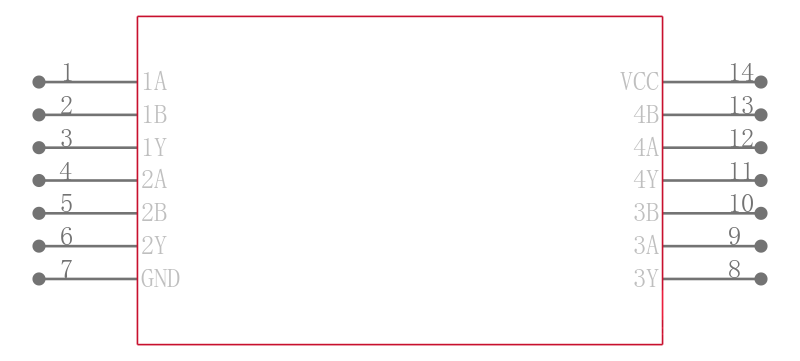

引脚数 14

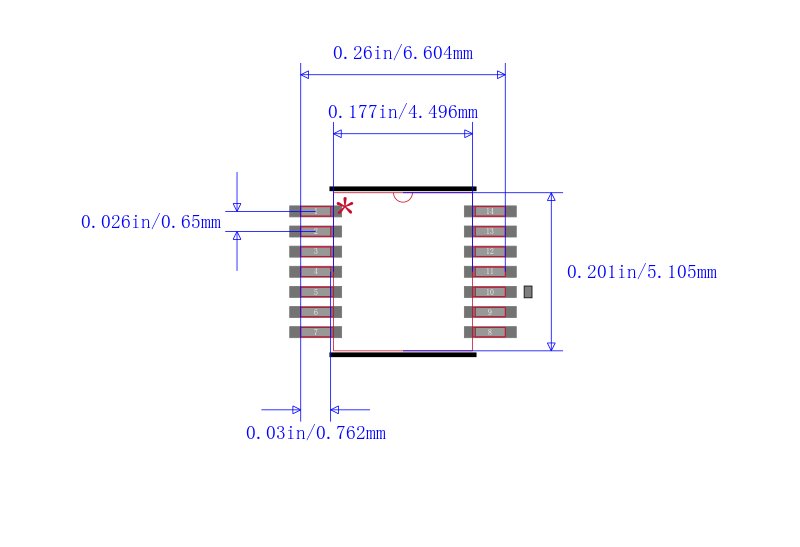

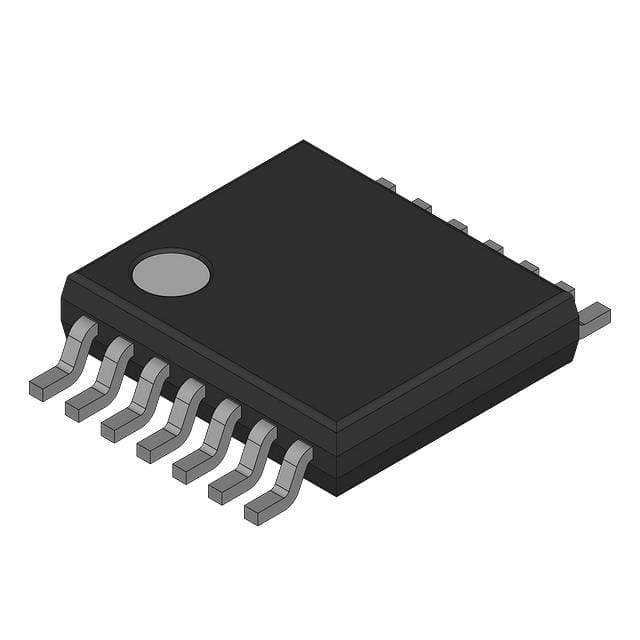

封装 TSSOP-14
封装 TSSOP-14
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74LVC86AQPWRQ1 TI 德州仪器 | 当前型号 | 当前型号 |
SN74LVC86AQPWREP 德州仪器 | 完全替代 | SN74LVC86AQPWRQ1和SN74LVC86AQPWREP的区别 |
SN74LVC86AQPWRG4Q1 德州仪器 | 完全替代 | SN74LVC86AQPWRQ1和SN74LVC86AQPWRG4Q1的区别 |
SN74LVC86APWR 德州仪器 | 类似代替 | SN74LVC86AQPWRQ1和SN74LVC86APWR的区别 |
