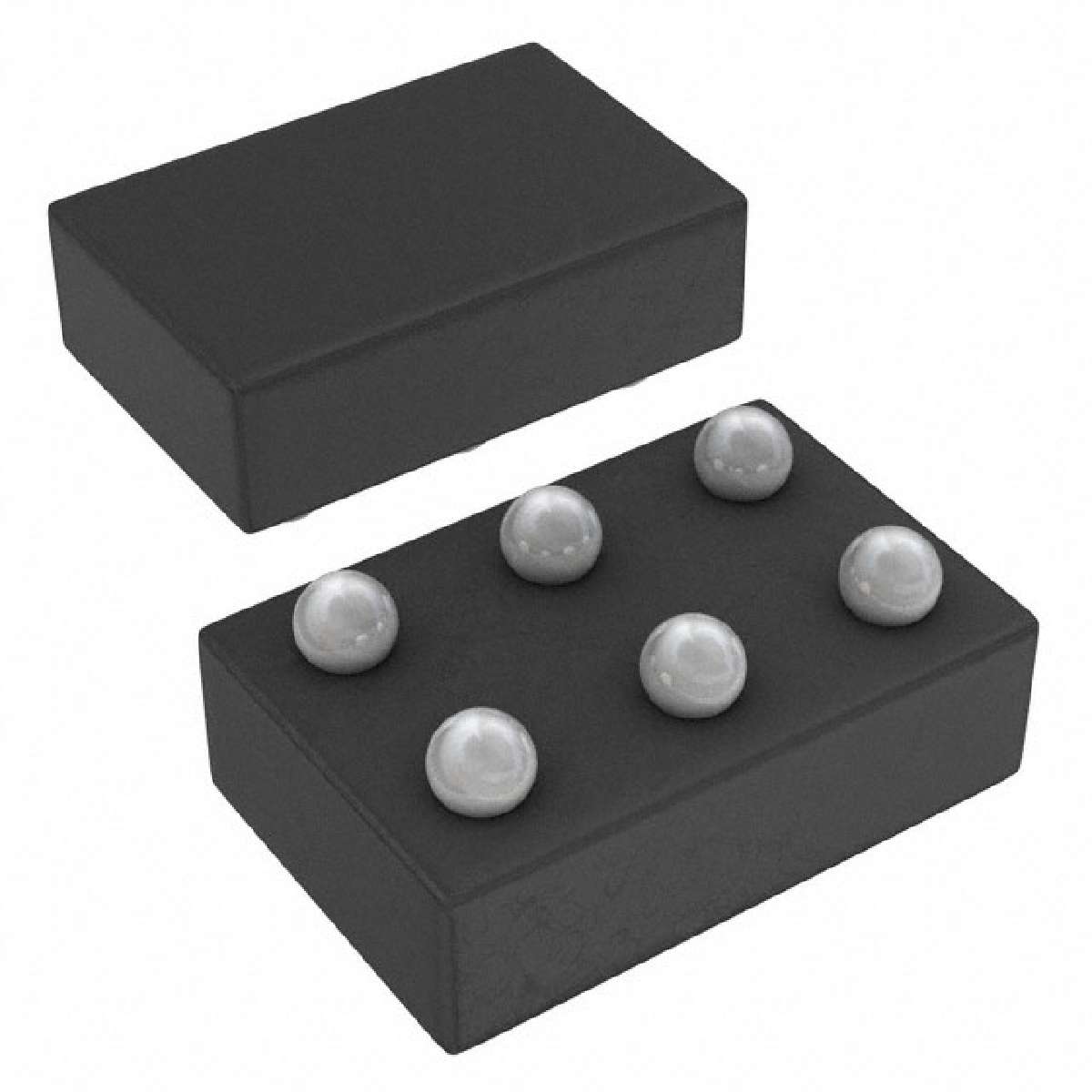

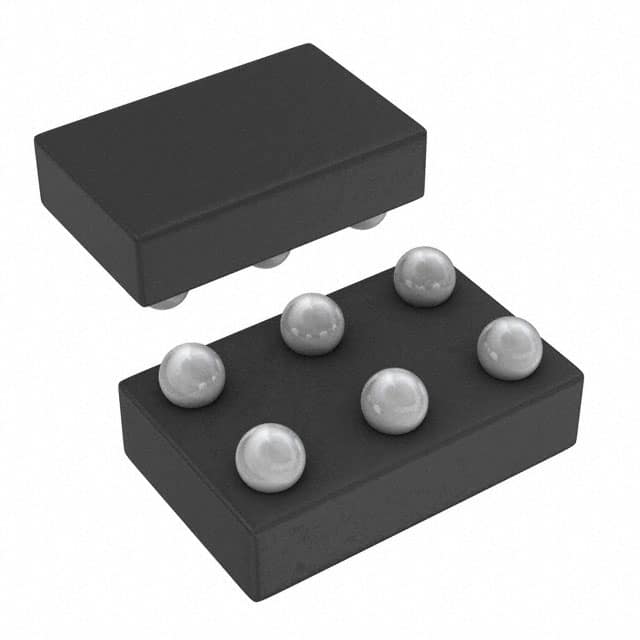

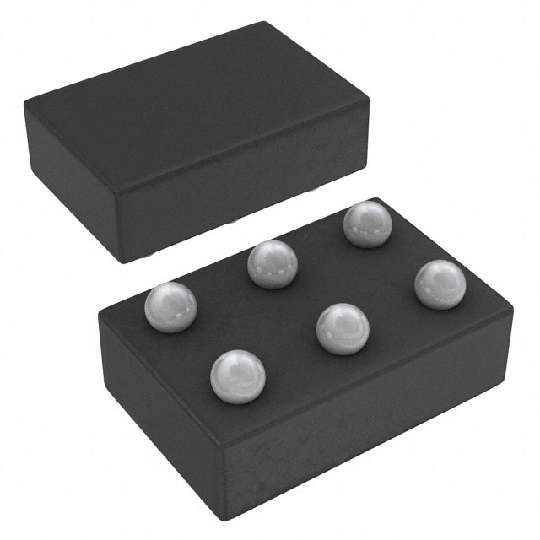

SN74AUP2G14YFPR

低功耗双施密特触发器逆变器 LOW-POWER DUAL SCHMITT-TRIGGER INVERTER

* Available in the Texas Instruments NanoStar Package * Low Static-Power Consumption ICC = 0.9 µA Maximum * Low Dynamic-Power Consumption Cpd = 4.3 pF Typical at 3.3 V * Low Input Capacitance Ci = 1.5 pF Typical * Low Noise — Overshoot and Undershoot CC * Ioff Supports Partial-Power-Down Mode Operation * Wide Operating VCC Range of 0.8 V to 3.6 V * Optimized for 3.3-V Operation * 3.6-V I/O Tolerant to Support Mixed-Mode Signal Operation * tpd = 4.3 ns Maximum at 3.3 V * Suitable for Point-to-Point Applications * Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II * ESD Performance Tested Per JESD 22 * 2000-V Human-Body Model A114-B, Class II * 1000-V Charged-Device Model C101
