四路2输入正或门 QUADRUPLE 2-INPUT POSITIVE-OR GATES
These devices contain four independent 2-input OR gates. They perform the Boolean functions Y = A + B or Y = A\ \x95 B\ in positive logic.
The SN54F32 is characterized for operation over the full military temperature range of -55°C to 125°C. The SN74F32 is characterized for operation from 0°C to 70°C.
得捷:
IC GATE OR 4CH 2-INP 14SOP
立创商城:
SN74F32NSR
德州仪器TI:
4-ch, 2-input, 4.5-V to 5.5-V bipolar OR gates
贸泽:
Logic Gates Quad 2-input Positive-OR gates
艾睿:
Simplify your circuit through the use of Texas Instruments&s; SN74F32NSR logic gates, great for implementing basic logical functions. This gate has an operating temperature range of 0 °C to 70 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V.
Chip1Stop:
OR Gate 4-Element 2-IN Bipolar 14-Pin SOP T/R
Verical:
OR Gate 4-Element 2-IN Bipolar 14-Pin SOP T/R
Win Source:
IC GATE OR 4CH 2-INP 14-SO
电源电压DC 4.50V ~ 5.50V
输出接口数 1
输出电流 20.0 mA
电路数 4
位数 4
传送延迟时间 6.60 ns
电压波节 5.00 V
逻辑门个数 4
输出电流驱动 -50.0 µA
输入数 2
工作温度Max 70 ℃
工作温度Min 0 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount

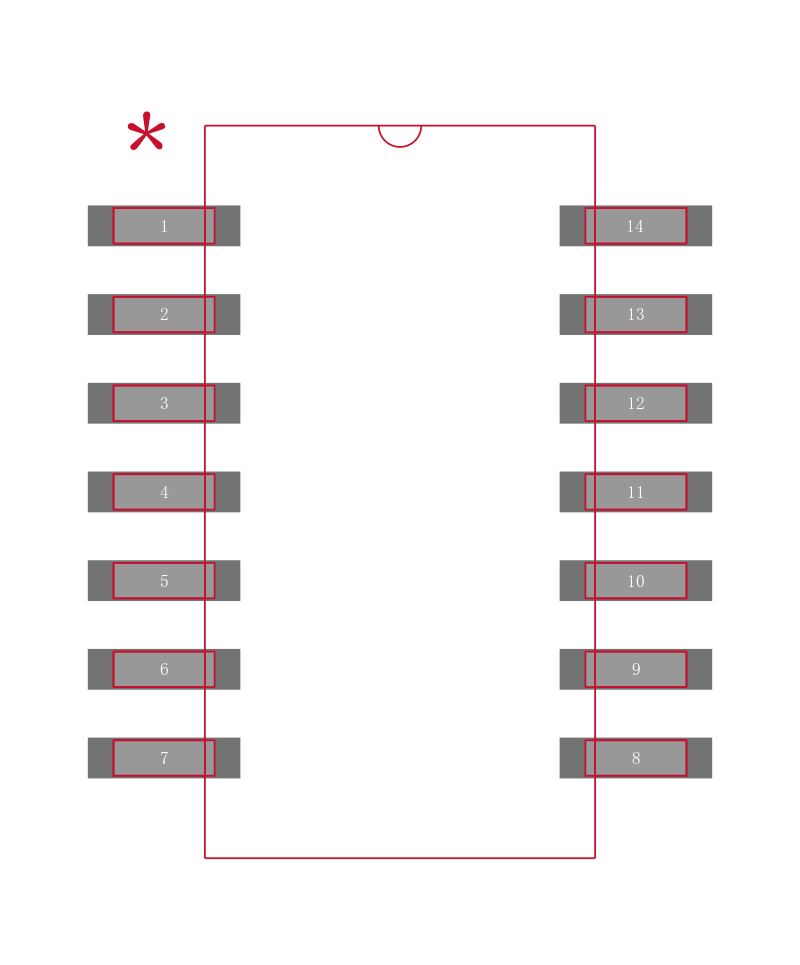

引脚数 14

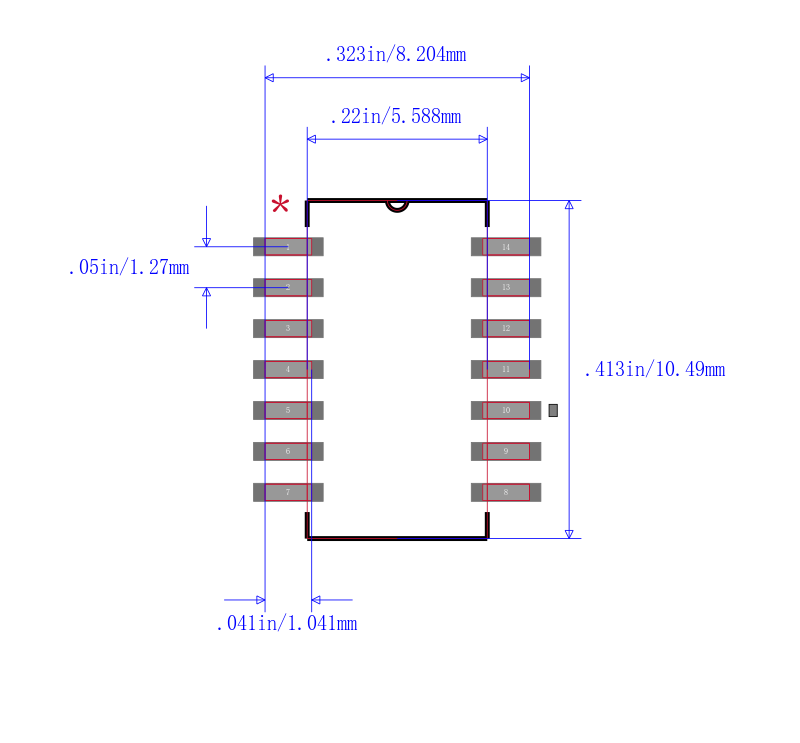

封装 SOP-14
长度 10.3 mm
宽度 5.3 mm
高度 1.95 mm
封装 SOP-14
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74F32NSR TI 德州仪器 | 当前型号 | 当前型号 |
SN74HC32DR 德州仪器 | 功能相似 | SN74F32NSR和SN74HC32DR的区别 |
SN74HC32PWR 德州仪器 | 功能相似 | SN74F32NSR和SN74HC32PWR的区别 |
SN74HC32N 德州仪器 | 功能相似 | SN74F32NSR和SN74HC32N的区别 |
