三路3输入正与非门 TRIPLE 3-INPUT POSITIVE-NAND GATE
description/ordering information
The SN74HC10 device contains three independent 3-input NAND gates. It performs the Boolean function Y = A • B • C or Y = A + B + C in positive logic.
● Controlled Baseline
− One Assembly/Test Site, One Fabrication Site
● Extended Temperature Performance of −40°C to 125°C
● Enhanced Diminishing Manufacturing Sources DMS Support
● Enhanced Product-Change Notification
● Qualification Pedigree†
● Wide Operating Voltage Range of 2 V to 6 V
● Outputs Can Drive Up To 10 LSTTL Loads
● Low Power Consumption, 20-µA Max ICC
● Typical tpd = 9 ns
● ±4-mA Output Drive at 5 V
● Low Input Current of 1 µA Max
电源电压DC 2.00V ~ 6.00V
输出电流 5.20 mA
电路数 3
位数 3
传送延迟时间 19.0 ns
电压波节 6.00 V, 5.00 V, 2.00 V
逻辑门个数 3
输出电流驱动 -1.00 mA
输入数 3
工作温度Max 125 ℃
工作温度Min 40 ℃
电源电压 2V ~ 6V
电源电压Max 6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 14

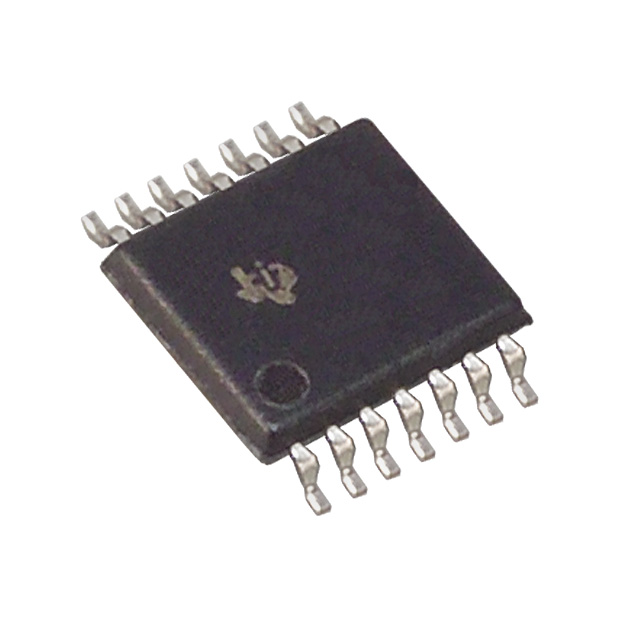

封装 TSSOP-14
长度 5 mm
宽度 4.4 mm
高度 1.15 mm
封装 TSSOP-14
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74HC10QPWREP TI 德州仪器 | 当前型号 | 当前型号 |
SN74HC10QPWRQ1 德州仪器 | 完全替代 | SN74HC10QPWREP和SN74HC10QPWRQ1的区别 |
SN74HC10PW 德州仪器 | 类似代替 | SN74HC10QPWREP和SN74HC10PW的区别 |
SN74HC10PWR 德州仪器 | 类似代替 | SN74HC10QPWREP和SN74HC10PWR的区别 |
