SN74LVC2GU04YZPR

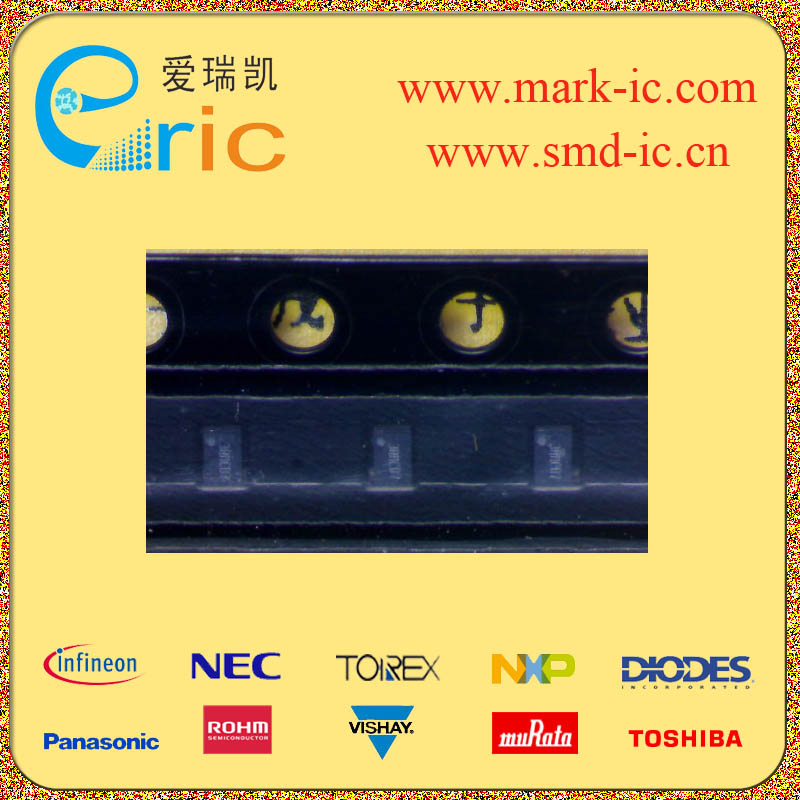

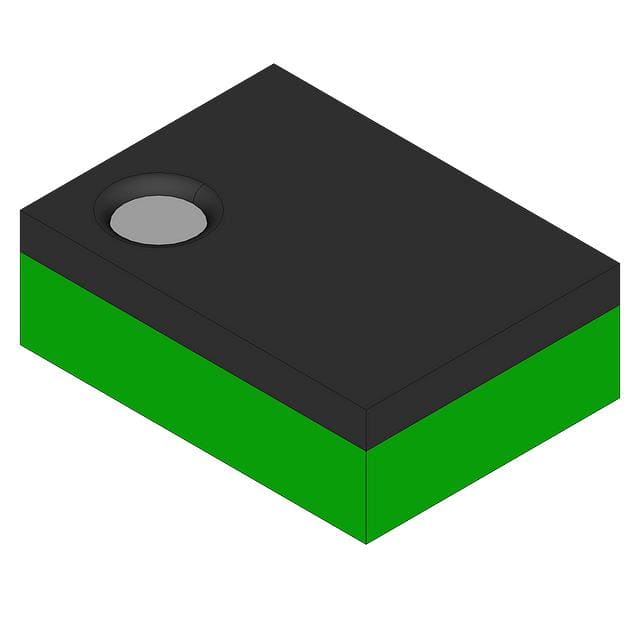

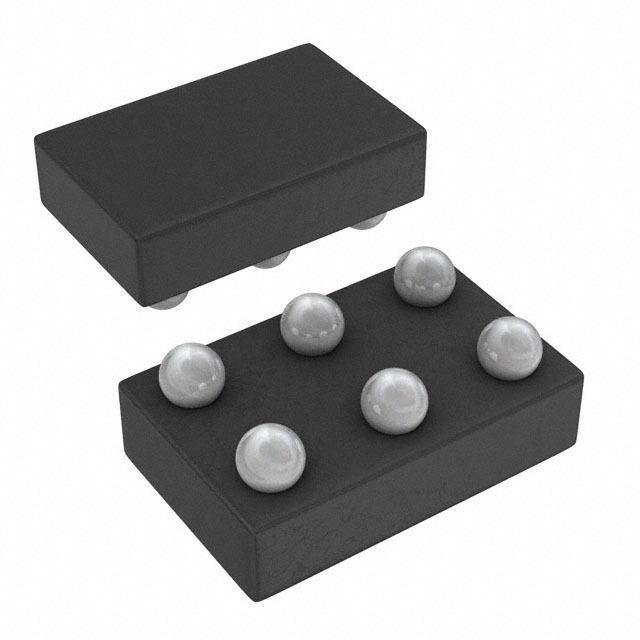

IC 反相器 SN74LVC2GU04YZPR 8-DSBGA/8-WCSP marking/标记 3AMC07

逻辑类型Logic Type| 反相器 Inverter \---|--- 电路数Number of Circuits| 2 输入数Number of Inputs| 1 电源电压VccVoltage - Supply| 1.65V~5.5V 静态电流IqCurrent - Quiescent Max| 10µA 输出高，低电平电流Current - Output High, Low| -32mA,32mA 低逻辑电平Logic Level - Low| 高逻辑电平Logic Level - High| 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL| 3.6ns @ 5V，50pF Description & Applications| DUAL INVERTER GATE ；• Available in the Texas Instruments • Typical VOHV Output VOH Undershoot NanoFree™ Package >2 V at VCC= 3.3 V, TA= 25°C • Supports 5-V VCC Operation • I off Supports Partial-Power-Down Mode • Inputs Accept Voltages to 5.5 V Operation • Latch-Up Performance Exceeds 100 mA Per • Max tpd of 3.7ns at 3.3 V JESD 78, Class II • Low Power Consumption, 10-µA Max ICC • ESD Protection Exceeds JESD 22 • ±24-mA Output Drive at 3.3 V – 2000-V Human-Body Model A114-A • Typical VOHVOutput Ground Bounce<0.8 V at – 1000-V Charged-Device Model C101 VCC= 3.3 V, TA= 25°C 描述与应用| 双变频门;•典型VOHV （输出VOH冲） NanoFree™封装>2 V在VCC=3.3 V，TA= 25°C •支持5-V VCC操作•我 关闭支持部分掉电模式 •输入接受5.5 V操作电压 •闭锁性能超过100 mA每 •最大TPD3.7ns电源电压为3.3 V JESD 78，II类 •低功耗，10μA最大ICC •ESD保护超过JESD22 •±24 mA输出驱动在3.3 V - 2000-V人体模型（A114-A） •典型VOHV（输出地弹跳）<0.8 V - 1000-V带电器件模型（C101） VCC= 3.3 V，TA= 25°C
