SDR2207-220YL

BOURNS  SDR2207-220YL  表面贴装功率电感器, SDR2207系列, 22 µH, ± 15%, 非屏蔽, 0.0394 ohm, 4 A

22 µH 无屏蔽 绕线 器 4 A 39.4 毫欧最大 非标准

立创商城:
22uH ±15% 4A 39.4mΩ

得捷:
FIXED IND 22UH 4A 39.4 MOHM SMD

e络盟:

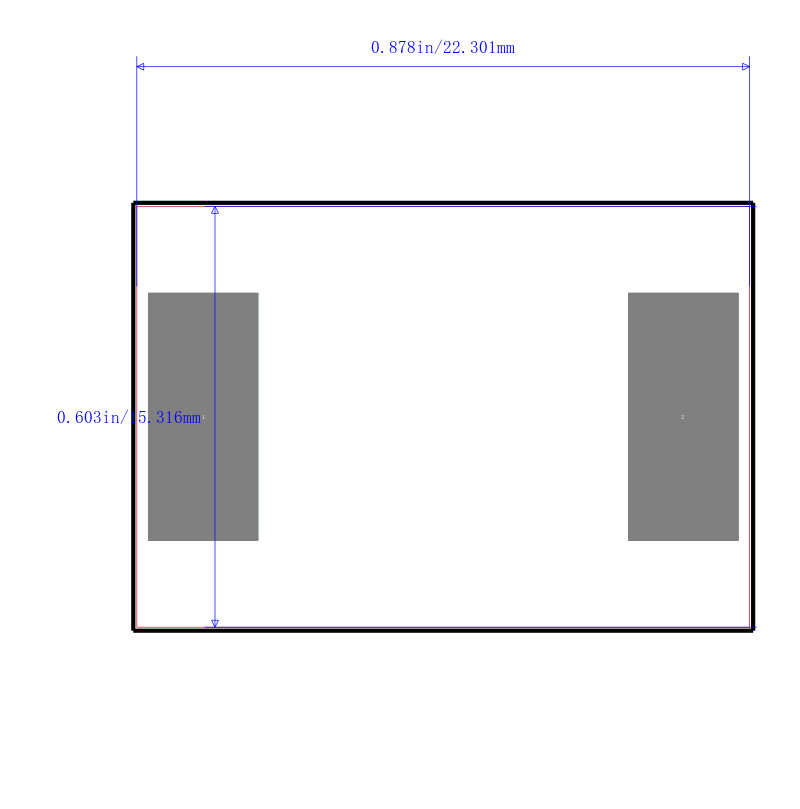

功率电感SMD, 22 µH, 4 A, 非屏蔽, 6.5 A, SDR2207系列, 22mm x 15mm x 7mm

艾睿:

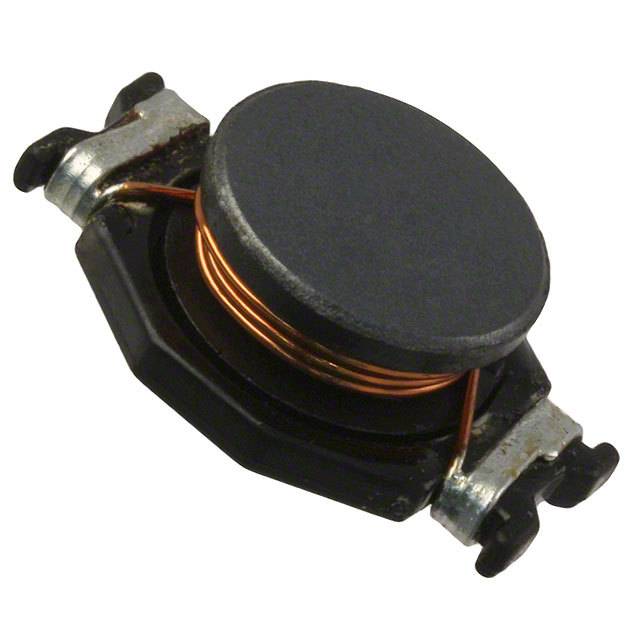

This power SDR2207-220YL surface mount inductor from Bourns is ideal for saving valuable space on a PCB. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It has a tolerance of 15%. This SMD inductor has a maximum DC current of 4 A with a maximum resistance of 39.4m Ohm. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 14M Hz. This product is 22.3 mm long, 7.8 mm tall and 15.3 mm deep. It has an inductance of 22u H. This device is made with wirewound technology.

安富利:
Ind Power Wirewound 22uH 15% 100KHz 27Q-Factor Ferrite 4A T/R

Chip1Stop:
Ind Power Wirewound 22uH 15% 100KHz 27Q-Factor Ferrite 4A T/R

Verical:
Inductor Power Unshielded Wirewound 22uH 15% 100KHz 27Q-Factor Ferrite 4A 0.0394Ohm DCR T/R

Newark:
# BOURNS  SDR2207-220YL  Surface Mount Power Inductor, SDR2207 Series, 22 µH, 4 A, 6.5 A, Unshielded, 0.0394 ohm

MASTER:
Inductor Power Wirewound 22uH 15% 100KHz 27Q-Factor Ferrite 4A 39.4mOhm DCR T/R

Online Components:
Inductor Power Wirewound 22uH 15% 100KHz 27Q-Factor Ferrite 4A 39.4mOhm DCR T/R

Electro Sonic:
Inductor Power Wirewound 22uH 15% 100KHz 27Q-Factor Ferrite 4A 39.4mOhm DCR T/R
