六反相器 HEX INVERTER
Convert analog signals into digital signals through the use of Texas Instruments" inverting Schmitt trigger. This inverting Schmitt trigger has an operating temperature range of -55 °C to 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This device has a typical operating supply voltage of 2.5|3.3|5 V. Its minimum operating supply voltage of 2 V, while its maximum is 5.5 V.
电源电压DC 2.00V ~ 5.50V
输出电流 8.00 mA
电路数 6
位数 6
传送延迟时间 8.50 ns
电压波节 5.00 V, 3.30 V
逻辑门个数 6
输出电流驱动 -1.00 mA
输入数 6
工作温度Max 125 ℃
工作温度Min -55 ℃
电源电压 2V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 14

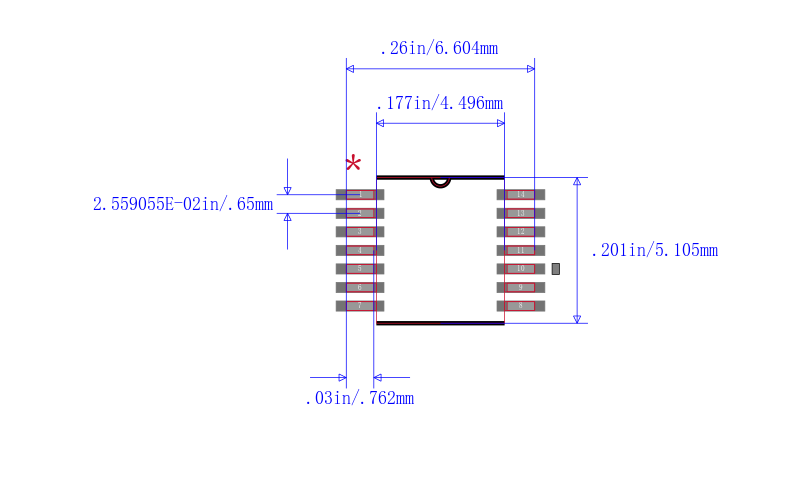

封装 TSSOP-14
封装 TSSOP-14
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74AHC04MPWREP TI 德州仪器 | 当前型号 | 当前型号 |
SN74AHC04PWR 德州仪器 | 类似代替 | SN74AHC04MPWREP和SN74AHC04PWR的区别 |
SN74AHC04DR 德州仪器 | 类似代替 | SN74AHC04MPWREP和SN74AHC04DR的区别 |
SN74AHC04D 德州仪器 | 类似代替 | SN74AHC04MPWREP和SN74AHC04D的区别 |
