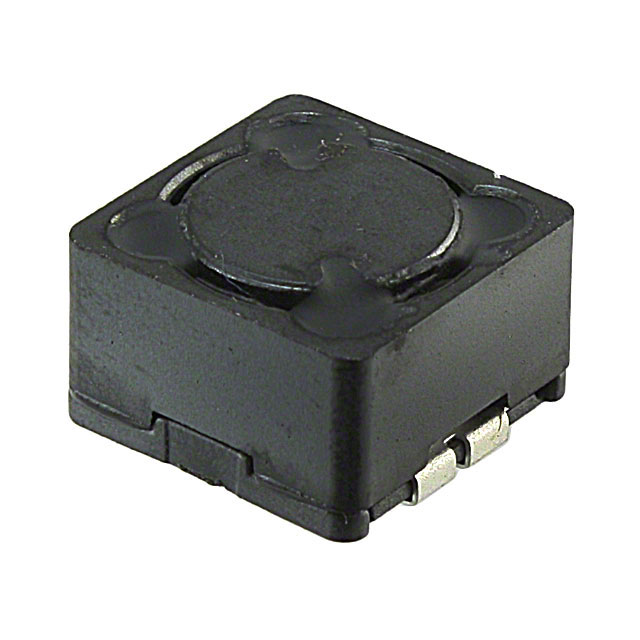

SRR1208-272KL

BOURNS  SRR1208-272KL  表面贴装功率电感器, SRR1208系列, 2.7 mH, ± 10%, 屏蔽, 5.2 ohm, 350 mA

Features

■ Available in E6 series

■ Unit height of 8.5 mm

■ Current up to 7.5 A

■ RoHS compliant

.

Applications

■ Input/output of DC/DC converters

■ Power supplies for:

   • Portable communication equipment

   • Camcorders

   • LCD TVs

   • Car radios

立创商城:
2.7mH ±10% 350mA 5.2Ω

得捷:
FIXED IND 2.7MH 350MA 5.2OHM SMD

e络盟:
功率电感SMD, 2.7 mH, 350 mA, 屏蔽, 380 mA, SRR1208系列, 12.7mm x 12.7mm x 8.5mm

艾睿:
This power SRR1208-272KL surface mount inductor from Bourns is ideal for saving valuable space on a PCB. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It has an inductance of 2.7m H. This SMD inductor has a maximum DC current of 350m A with a maximum resistance of 5.2 Ohm. This product is 13 mm long, 8.5 mm tall and 13 mm deep. This device is made with wirewound technology. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 600K Hz. It has a tolerance of 10%.

安富利:
Ind Power Shielded Wirewound 2.7mH 10% 1KHz 20Q-Factor Ferrite 350mA T/R

Verical:
Inductor Power Shielded Wirewound 2.7mH 10% 1KHz 20Q-Factor Ferrite 350mA 5.2Ohm DCR Automotive T/R

Newark:
# BOURNS  SRR1208-272KL  Surface Mount Power Inductor, SRR1208 Series, 2.7 mH, 350 mA, 380 mA, Shielded, 5.2 ohm

MASTER:
Inductor Power Shielded Wirewound 2.7mH 10% 1KHz 20Q-Factor Ferrite 350mA 5.2Ohm DCR Automotive T/R

Online Components:
Inductor Power Shielded Wirewound 2.7mH 10% 1KHz 20Q-Factor Ferrite 350mA 5.2Ohm DCR Automotive T/R

Electro Sonic:
Inductor Power Shielded Wirewound 2.7mH 10% 1KHz 20Q-Factor Ferrite 350mA 5.2Ohm DCR T/R
