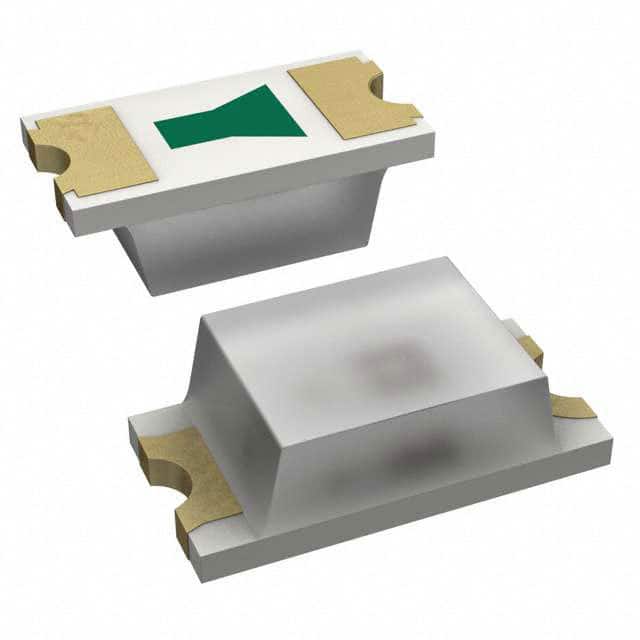

SML-D15U2WT86

SML-D15 系列 红色 0603 漫射式 140 mcd 2 V 表面贴装 高亮度 LED

The from ROHM is an automotive grade SML-D15x series high brightness single rank chip . This chip LED is optimized for applications where multiple LED"s are configured side-by-side and consistent brightness is desired. There are three main advantages for using circuits with SML-D15 single rank LEDs. The first advantage is the elimination of variation in LED brightness between products. The second advantage is the reduced design work load. There is no need to evaluate multiple LED bins and ranks or change current setting resistors. Lastly, there is reduced part number inventory control.

.

Automotive grade AEC-Q101 qualified

.

1608 0603 size chip LED

.

High luminous intensity, maximum brightness Iv is 180mcd at IF = 20mA

.

Designed for high temperature environments, good for industrial equipment

.

Power dissipation is 84mW

.

Red emitted colour

.

Forward voltage VF is 2V typ at IF = 20mA

.

Maximum reverse current IR is 10µA at Vr = 5V

.

Dominant wavelength is 615nm typ at IF = 20mA, typical luminous intensity is 140mcd

.

Wide operating temperature range from -40°C to 100°C
