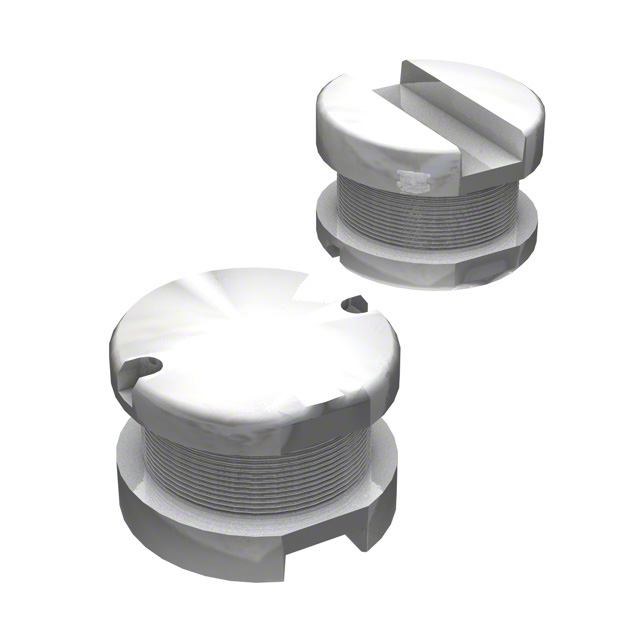

SDR0603-820KL

BOURNS  SDR0603-820KL  表面贴装功率电感器, SDR0603系列, 82 µH, ± 10%, 非屏蔽, 0.84 ohm, 400 mA

SMD Power Inductors

Features

■Available in E12 series

■Small design of only 5.8 mm maximum diameter

■Low 3.9 mm profile

.

Applications

■Input/output of DC/DC converters

■Power supplies for:

  • Portable communication equipment

  • Camcorders

  • LCD TVs

  • Car radios

得捷:
FIXED IND 82UH 400MA 840MOHM SMD

立创商城:
82uH ±10% 400mA 840mΩ

e络盟:
功率电感SMD, 82 µH, 400 mA, 非屏蔽, 480 mA, SDR0603系列, 5.8mm x 5.8mm x 3.9mm

艾睿:
Use this power SDR0603-820KL surface mount inductor from Bourns to make any circuit look clean and compact. This SMD inductor has an operating temperature range of -40 °C to 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 11M Hz. This SMD inductor has a maximum DC current of 400m A with a maximum resistance of 840m Ohm. It has an inductance of 82u H. This product is 3.9 mm tall with a diameter of 5.8 mm. It has a tolerance of 10%. This device utilizes wirewound technology.

安富利:
Ind Power Wirewound 82uH 10% 1KHz 15Q-Factor Ferrite 400mA T/R

Verical:
Inductor Power Unshielded Wirewound 82uH 10% 1KHz 15Q-Factor Ferrite 0.4A 0.84Ohm DCR Automotive T/R

Electro Sonic:
Inductor Power Wirewound 82uH 10% 1KHz 15Q-Factor Ferrite 400mA 840mOhm DCR Automotive T/R
