ROHM Through Hole SLI-343 Series LEDsThe SLI-343 series, from ROHM Semiconductor, consists of 3.1mm through hole LED lamps. The SLI-343 LEDs are round with a domed top and offer high brightness. The SLI-343 LEDs are also competent to direct mount.Viewing angle: 40° ### 可见光 LED,ROHM Semiconductor
ROHM Through Hole SLI-343 Series s

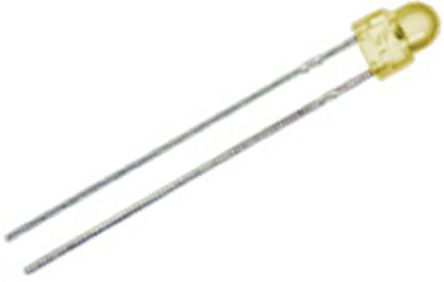

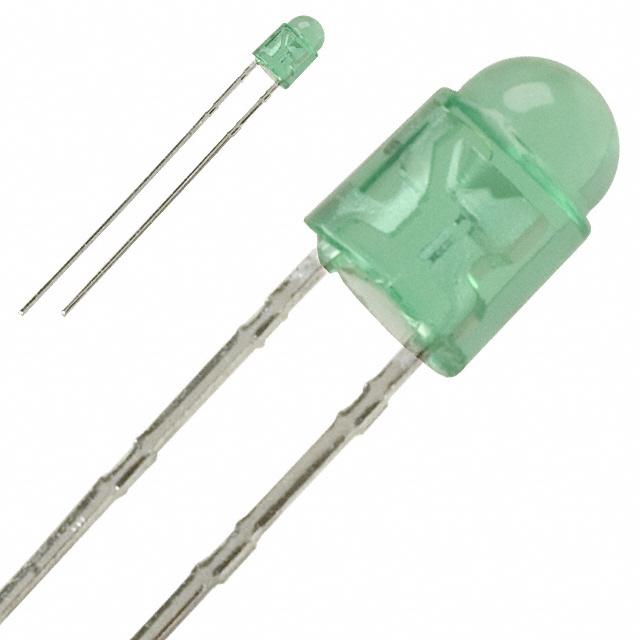

The SLI-343 series, from , consists of 3.1mm through hole LED lamps. The SLI-343 LEDs are round with a domed top and offer high brightness. The SLI-343 LEDs are also competent to direct mount.
Viewing angle: 40°
### 可见光 LED,ROHM Semiconductor
针脚数 2
正向电压 2.1 V

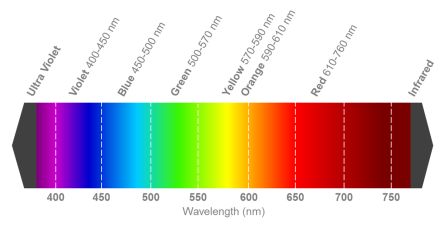

波长 572 nm
发光强度 180 mcd
视角 40°
耗散功率 62 W
测试电流 20 mA
正向电流 20 mA
正向电流Max 25 mA
工作温度Max 80 ℃
工作温度Min 20 ℃
耗散功率Max 62 mW
安装方式 Through Hole
引脚数 2
封装 T-1
长度 3.8 mm
宽度 3.8 mm
高度 5.4 mm
封装 T-1
颜色 Green
工作温度 -25℃ ~ 80℃
产品生命周期 Not Recommended for New Designs
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 无铅
