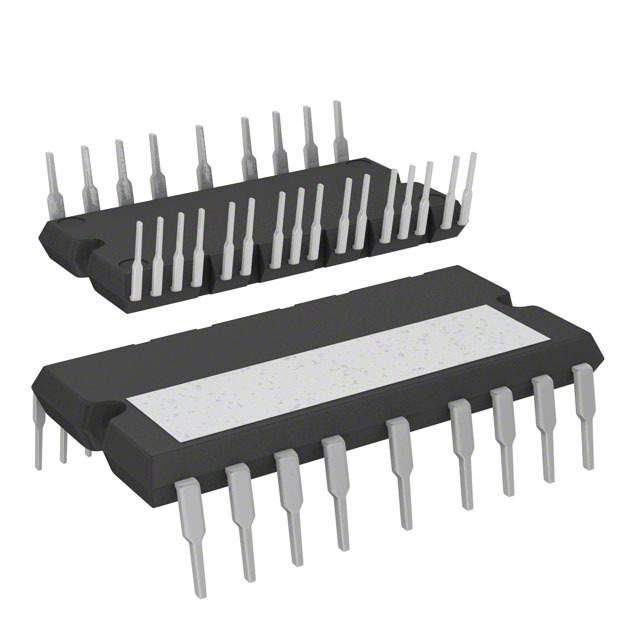

STGIPS20C60-H

SLLIMM邃｢ small low-loss intelligent molded module IPM, 3-phase inverter - 20 A, 600 V short-circuit rugged IGBT

This intelligent power module provides a compact, high performance AC motor drive in a simple, rugged design. Combining ST proprietary control ICs with the most advanced short-circuit-rugged IGBT system technology, this device is ideal for 3-phase inverters in applications such as motor drives and air conditioners. SLLIMM™ is a trademark of STMicroelectronics.

**Key Features**

.

IPM 20 A, 600 V 3-phase IGBT inverter bridge including control ICs for gate driving and free-wheeling diodes

.

Short-circuit rugged IGBTs

.

3.3 V, 5 V, 15 V CMOS/TTL inputs comparators with hysteresis and pull-down / pull-up resistors

.

Undervoltage lockout

.

Internal bootstrap diode

.

Interlocking function

.

Smart shutdown function

.

Comparator for fault protection against overtemperature and overcurrent

.

DBC leading to low thermal resistance

.

Isolation rating of 2500 Vrms /min

.

UL recognized: UL1557 file E81734
