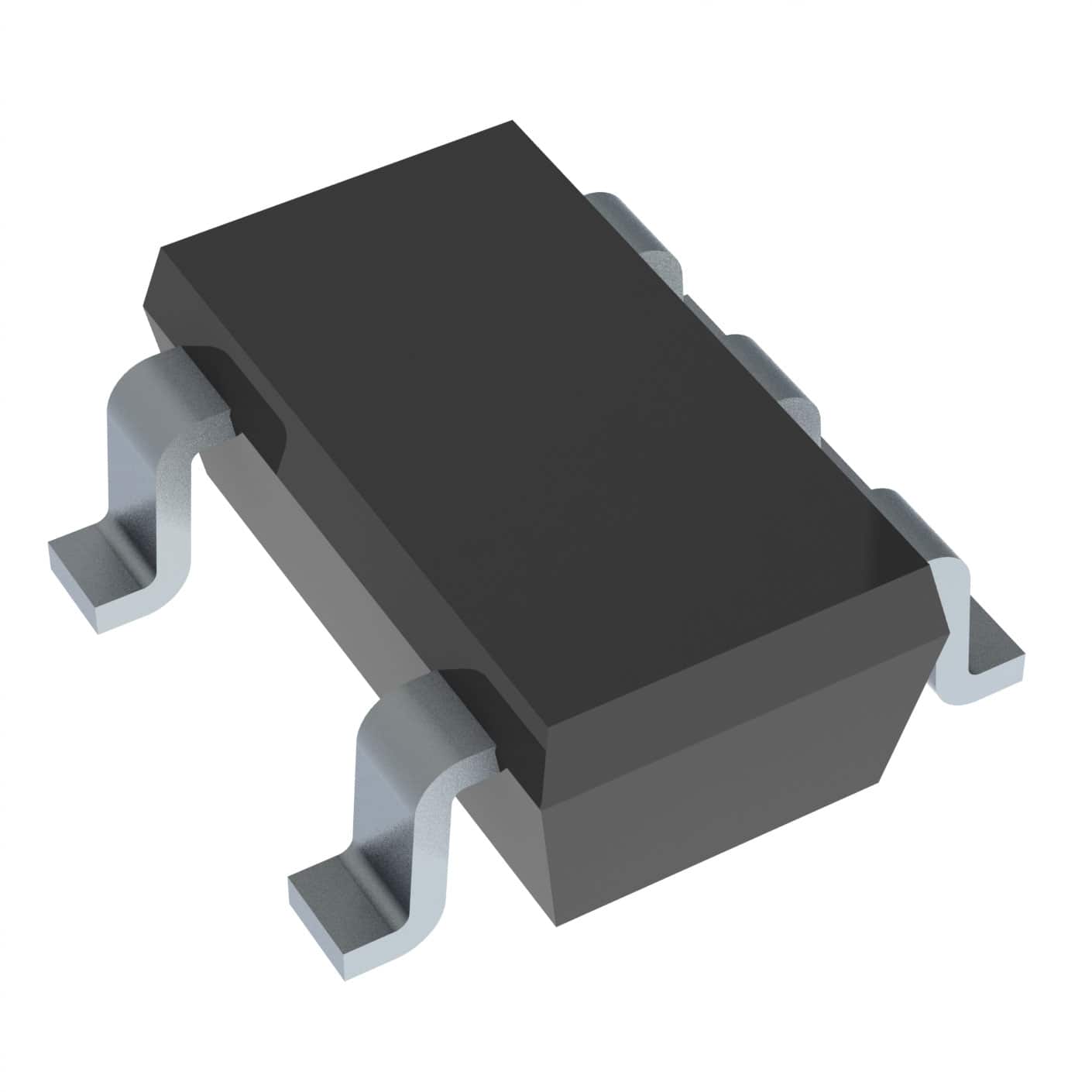

TEXAS INSTRUMENTS SN74AUP1G00DBVT 与非门, AUP系列, 1门, 2输入, 4 mA, 800mV至3.6V, SOT-23-5
与非门 IC 1 通道 - SOT-23-5
立创商城:
SN74AUP1G00DBVT
德州仪器TI:
Single 1-input, 0.8-V to 3.6-V low power NAND gate
得捷:
IC GATE NAND 1CH 2-INP SOT23-5
e络盟:
与非门, 74AUP1G00, 2输入, 4 mA, 0.8 V至3.6 V, SOT-23-5
艾睿:
Dump the microprocessor and build your circuit using fundamental logical operations using Texas Instruments&s; SN74AUP1G00DBVT logic gates. This gate has a minimum operating temperature of -40 °C and a maximum of 85 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This device has a typical operating supply voltage of 1.8|2.5|3.3 V. Its minimum operating supply voltage of 0.8 V, while its maximum is 3.6 V.
安富利:
NAND Gate 1-Element 2-IN CMOS 5-Pin SOT-23 T/R
Chip1Stop:
NAND Gate 1-Element 2-IN CMOS 5-Pin SOT-23 T/R
Verical:
NAND Gate 1-Element 2-IN CMOS 5-Pin SOT-23 T/R
Newark:
NAND Gate, 74AUP1G00, 2 Input, 4 mA, 0.8 V to 3.6 V, SOT-23-5
Win Source:
IC GATE NAND 1CH 2-INP SOT23-5 / NAND Gate IC 1 Channel SOT-23-5
电源电压DC 800mV min
输出接口数 1
输出电流 4 mA
电路数 1
针脚数 5
位数 1
传送延迟时间 4.50 ns
逻辑门个数 1
输入数 2
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 0.8V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 0.8 V
安装方式 Surface Mount
引脚数 5
封装 SOT-23-5
封装 SOT-23-5
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74AUP1G00DBVT TI 德州仪器 | 当前型号 | 当前型号 |
SN74AUP1G00DBVR 德州仪器 | 完全替代 | SN74AUP1G00DBVT和SN74AUP1G00DBVR的区别 |
SN74AUP1G00DBVTG4 德州仪器 | 类似代替 | SN74AUP1G00DBVT和SN74AUP1G00DBVTG4的区别 |
SN74AUP1G00DBVRG4 德州仪器 | 类似代替 | SN74AUP1G00DBVT和SN74AUP1G00DBVRG4的区别 |
