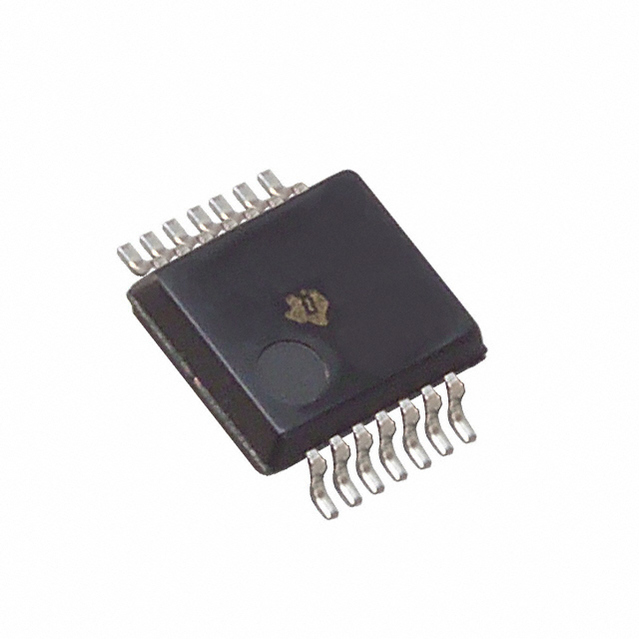

SN74LV04ADBR

六路反向器 HEX INVERTERS

description

These hex inverters are designed for 2-V to 5.5-V VCC operation.

The SN74LV04A device contains six independent inverters.

Features

• 2-V to 5.5-V VCC Operation

• Max tpd of 6.5 ns at 5 V

• Latch-Up Performance Exceeds 250 mA Per JESD 17

• Typical VOLPOutput Ground Bounce < 0.8 V at VCC= 3.3 V, TA= 25°C

• Typical VOHVOutput VOH Undershoot> 2.3 V at VCC= 3.3 V, TA= 25°C

• Support Mixed-Mode Voltage Operation on All Ports

• Ioff Supports Partial-Power-Down Mode Operation

• ESD Protection Exceeds JESD 22

– 2000-V Human-Body Model

– 200-V Machine Model

– 1000-V Charged-Device Model
