四路2输入正或非门 QUADRUPLE 2-INPUT POSITIVE-NOR GATES
The SNx4HC02 devices contain four independent 2-input NOR gates. They perform the Boolean function Y = A + B or Y = A • B in positive logic.
得捷:
IC GATE NOR 4CH 2-INP 14SSOP
立创商城:
SN74HC02DBR
德州仪器TI:
4-ch, 2-input, 2-V to 6-V NOR gates
贸泽:
逻辑门 Quad 2-Input
艾睿:
Build any logic circuits you can think of with this SN74HC02DBR logic gate by Texas Instruments. This gate has an operating temperature range of -40 °C to 85 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 2 V, while its maximum is 6 V.
安富利:
NOR Gate 4-Element 2-IN CMOS 14-Pin SSOP T/R
Verical:
NOR Gate 4-Element 2-IN CMOS 14-Pin SSOP T/R
电源电压DC 2.00V ~ 6.00V
输出接口数 1
输出电流 5.20 mA
电路数 4
位数 4
传送延迟时间 20.0 ns
电压波节 6.00 V, 5.00 V, 2.00 V
逻辑门个数 4
输出电流驱动 -1.00 mA
输入数 2
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2V ~ 6V
电源电压Max 6 V
电源电压Min 2 V
安装方式 Surface Mount

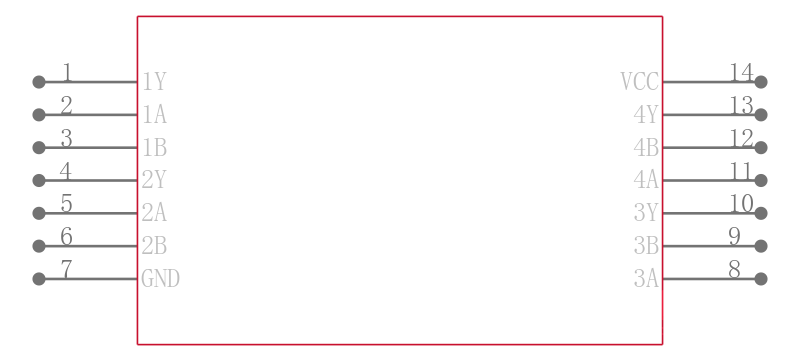

引脚数 14

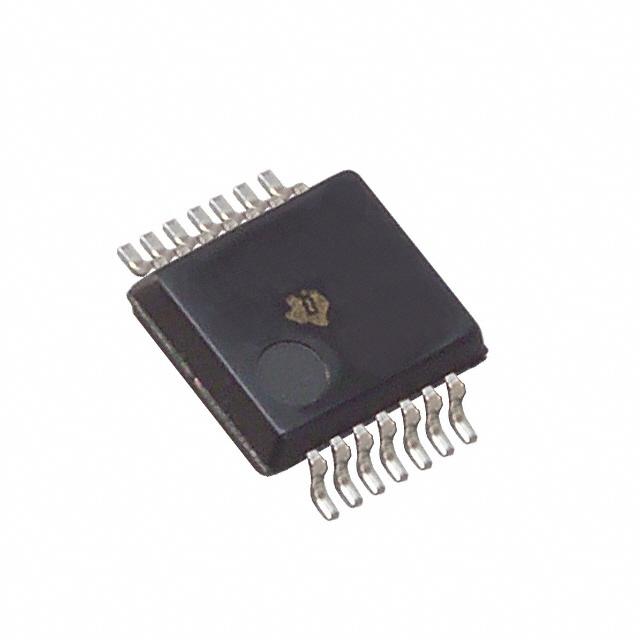

封装 SSOP-14
长度 6.2 mm
宽度 5.3 mm
高度 1.95 mm
封装 SSOP-14
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74HC02DBR TI 德州仪器 | 当前型号 | 当前型号 |
SN74HC02DBRE4 德州仪器 | 完全替代 | SN74HC02DBR和SN74HC02DBRE4的区别 |
SN74HC02DBRG4 德州仪器 | 类似代替 | SN74HC02DBR和SN74HC02DBRG4的区别 |
MC74HC02AFL1 安森美 | 功能相似 | SN74HC02DBR和MC74HC02AFL1的区别 |
