单3输入正与门 SINGLE 3-INPUT POSITIVE-AND GATE
Perform multiple different logical operations through the use of Texas Instruments" logic gates. This gate has a minimum operating temperature of -40 °C and a maximum of 85 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This device has a typical operating supply voltage of 1.8|2.5|3.3|5 V. Its minimum operating supply voltage of 1.65 V, while its maximum is 5.5 V.
电源电压DC 1.65V ~ 5.50V
输出接口数 1
电路数 1
位数 1
传送延迟时间 5.90 ns
电压波节 5.00 V, 3.30 V, 2.50 V, 1.80 V
逻辑门个数 1
输出电流驱动 -1.00 mA
输入数 3
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 1.65V ~ 5.5V
安装方式 Surface Mount
引脚数 6

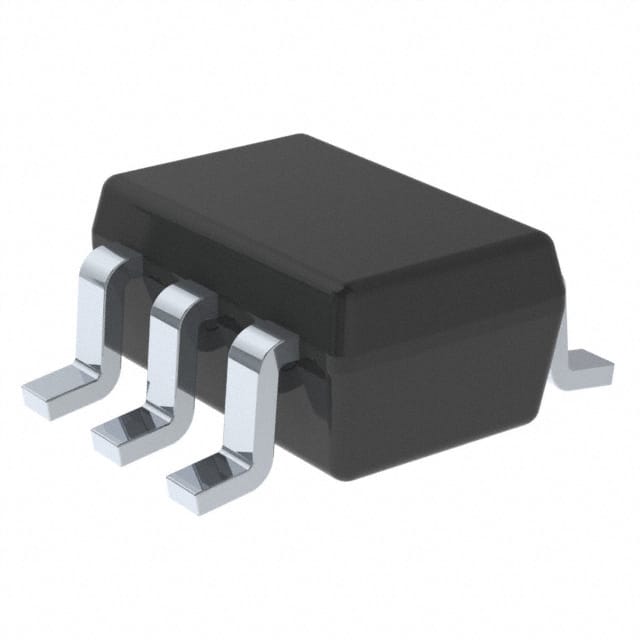

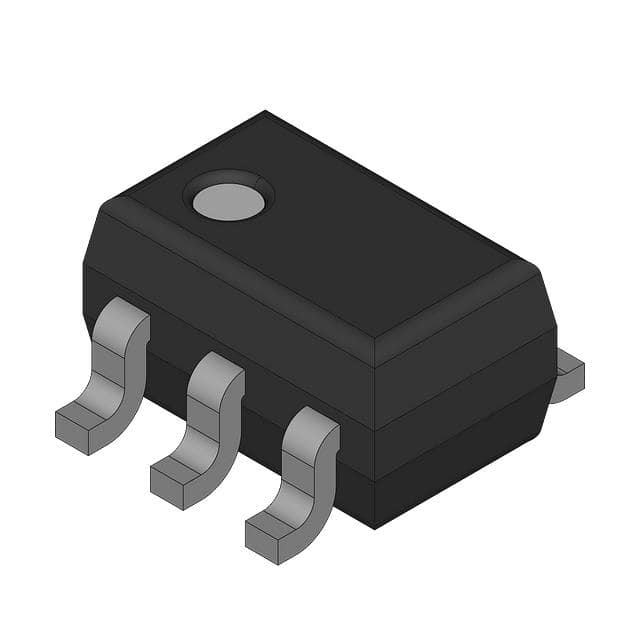

封装 SC-70-6
封装 SC-70-6
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74LVC1G11IDCKRQ1 TI 德州仪器 | 当前型号 | 当前型号 |
SN74LVC1G11DSFR 德州仪器 | 类似代替 | SN74LVC1G11IDCKRQ1和SN74LVC1G11DSFR的区别 |
