单个逆变器缓冲器/驱动器,具有漏极开路输出 SINGLE INVERTER BUFFER/DRIVER WITH OPEN-DRAIN OUTPUT
Amplify analog and digital signals by driving the input to the transmission line with this buffer and line driver from Texas Instruments. With an open drain output, this is power management at its best. This line driver has a minimum operating temperature of -40 °C and a maximum of 85 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. It has 1 channels per chip. This inverting device has a typical operating supply voltage of 1.8|2.5 V. Its minimum operating supply voltage of 0.8 V, while its maximum is 2.7 V.
电源电压DC 2.70 V
输出接口数 1
电路数 1
通道数 1
位数 1
传送延迟时间 1.90 ns
逻辑门个数 1
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 0.8V ~ 2.7V
电源电压Max 2.7 V
电源电压Min 0.8 V
安装方式 Surface Mount
引脚数 5

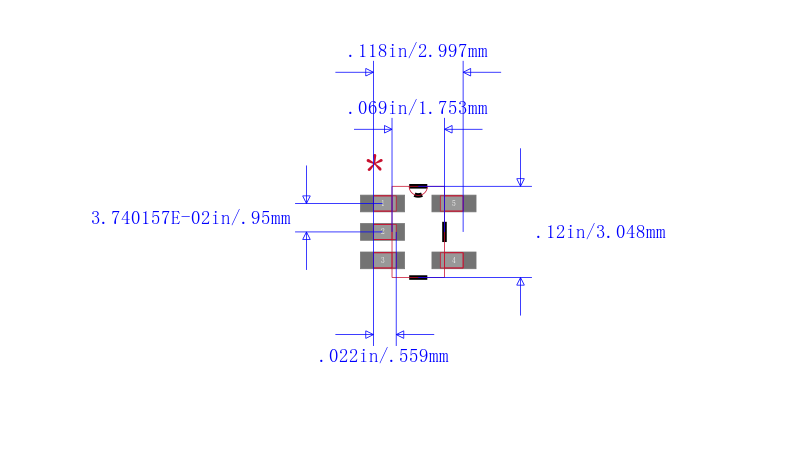

封装 SOT-23-5
长度 2.9 mm
宽度 1.6 mm
高度 1.15 mm
封装 SOT-23-5
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74AUC1G06DBVR TI 德州仪器 | 当前型号 | 当前型号 |
SN74AUC1G06DBVRE4 德州仪器 | 完全替代 | SN74AUC1G06DBVR和SN74AUC1G06DBVRE4的区别 |
SN74AUC1G06DBVRG4 德州仪器 | 类似代替 | SN74AUC1G06DBVR和SN74AUC1G06DBVRG4的区别 |
