SN74AUC1G00YZPR

单路2输入正与非门 SINGLE 2 INPUT POSITIVE NAND GATE

This single 2-input positive-NAND gate is operational at 0.8-V to 2.7-V VCC, but is designed specifically for 1.65-V to 1.95-V VCC operation.

The SN74AUC1G00 performs the Boolean function Y = A • B or Y = A \\+ B in positive logic.

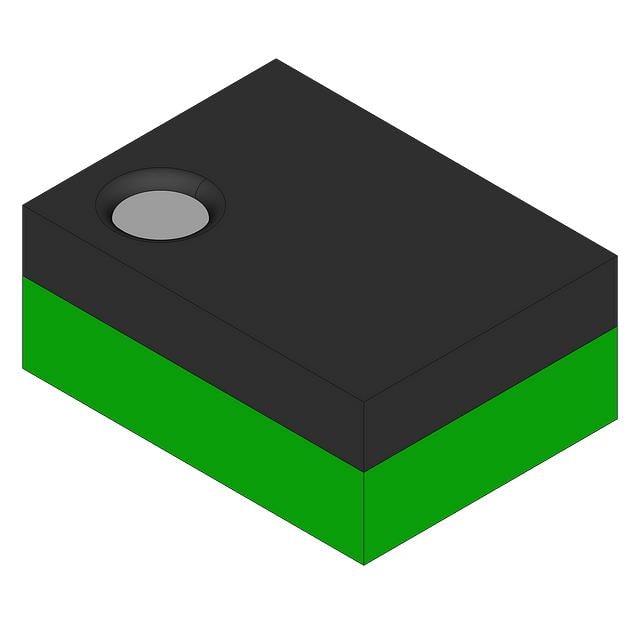

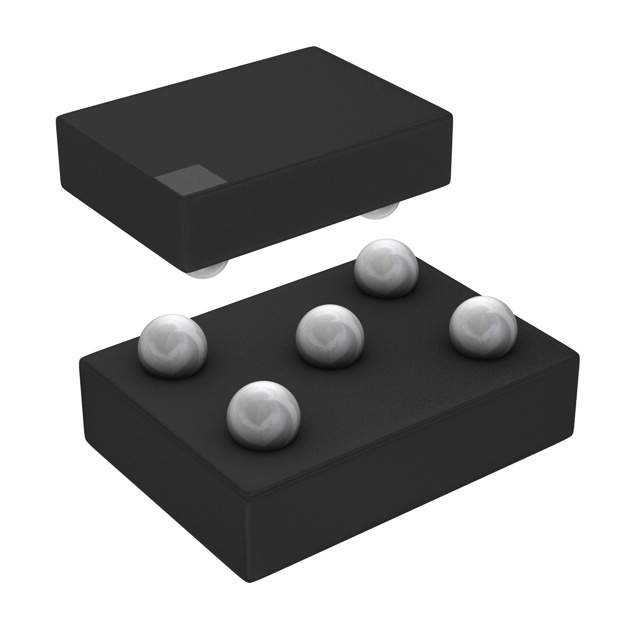

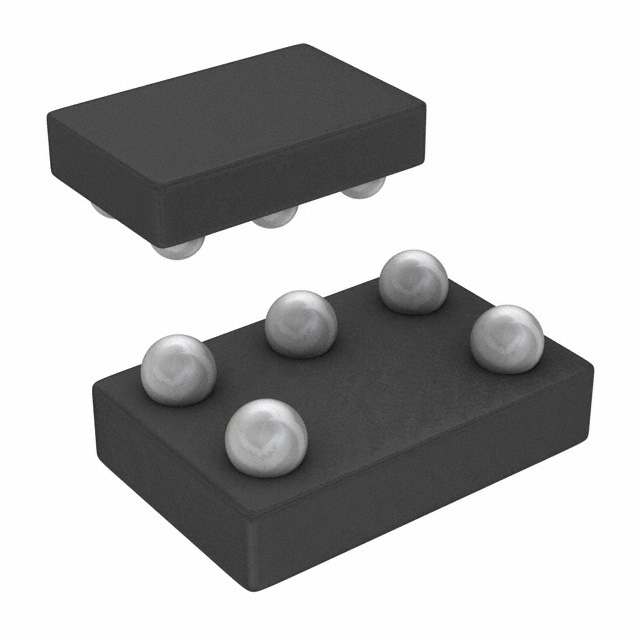

NanoFree™ package technology is a major breakthrough in IC packaging concepts, using the die as the package.

This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

For more information about AUC Little Logic devices, please refer to the application report, _Applications of Texas Instruments AUC Sub-1-V Little Logic Devices_, literature number SCEA027.
