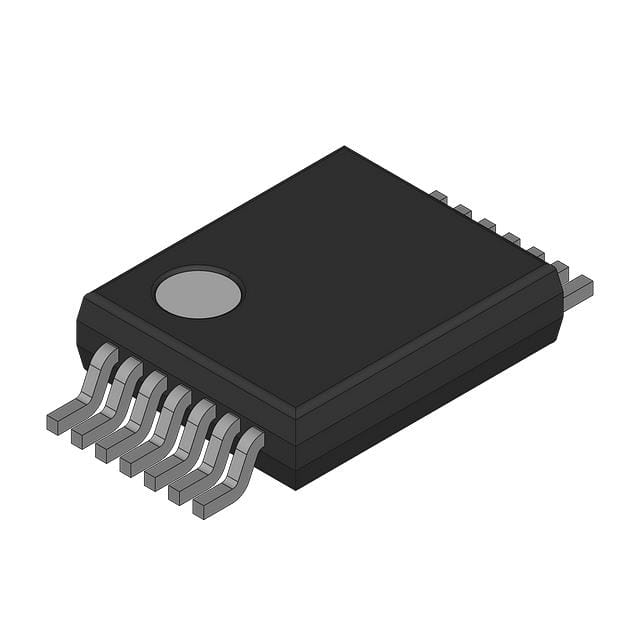

四路2输入正或非门 QUADRUPLE 2-INPUT POSITIVE-NOR GATES
description/ordering information
These devices contain four independent 2-input NOR gates that perform the Boolean function Y = A • B or Y = A + B in positive logic.
• Inputs Are TTL-Voltage Compatible
• Latch-Up Performance Exceeds 250 mA Per JESD 17
• ESD Protection Exceeds JESD 22
− 2000-V Human-Body Model A114-A
− 200-V Machine Model A115-A
− 1000-V Charged-Device Model C101
得捷:
IC GATE NOR 4CH 2-INP 14TVSOP
立创商城:
SN74AHCT02DGVR
德州仪器TI:
4-ch, 2-input, 4.5-V to 5.5-V NOR gates with TTL-compatible CMOS inputs
贸泽:
逻辑门 Quad 2-Input
艾睿:
SN74AHCT02DGVR logic gates from Texas Instruments are designed specifically to be interconnected and create a variety of different logic-based circuits. This gate has an operating temperature range of -40 °C to 85 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V.
安富利:
NOR Gate 4-Element 2-IN CMOS 14-Pin TVSOP T/R
Chip1Stop:
NOR Gate 4-Element 2-IN CMOS 14-Pin TVSOP T/R
Verical:
NOR Gate 4-Element 2-IN CMOS 14-Pin TVSOP T/R
Win Source:
NOR Gate IC 4 Channel 14-TVSOP
电源电压DC 4.50V ~ 5.50V
输出接口数 1
输出电流 8.00 mA
电路数 4
位数 4
传送延迟时间 8.50 ns
电压波节 5.00 V
逻辑门个数 4
输出电流驱动 -1.00 mA
输入数 2
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
安装方式 Surface Mount
引脚数 14
封装 TVSOP-14
长度 3.6 mm
宽度 4.4 mm
高度 1.05 mm
封装 TVSOP-14
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74AHCT02DGVR TI 德州仪器 | 当前型号 | 当前型号 |
SN74AHCT02DGVRG4 德州仪器 | 类似代替 | SN74AHCT02DGVR和SN74AHCT02DGVRG4的区别 |
SN74AHCT02DGVRE4 德州仪器 | 功能相似 | SN74AHCT02DGVR和SN74AHCT02DGVRE4的区别 |
T541X477M006BT8605 基美 | 功能相似 | SN74AHCT02DGVR和T541X477M006BT8605的区别 |
