单非门 SINGLE INVERTER GATE
inverting Schmitt triggers from Texas Instruments are designed specifically to clean up noisy analog signals and convert them into more manageable digital signals. This inverting Schmitt trigger has an operating temperature range of -40 °C to 85 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This device has a typical operating supply voltage of 1.8|2.5 V. Its minimum operating supply voltage of 0.8 V, while its maximum is 2.7 V.
输出电流 9.00 mA
电路数 1
位数 1
传送延迟时间 2.00 ns
电压波节 2.50 V
逻辑门个数 1
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 0.8V ~ 2.7V
电源电压Max 2.7 V
电源电压Min 0.8 V
安装方式 Surface Mount
引脚数 5

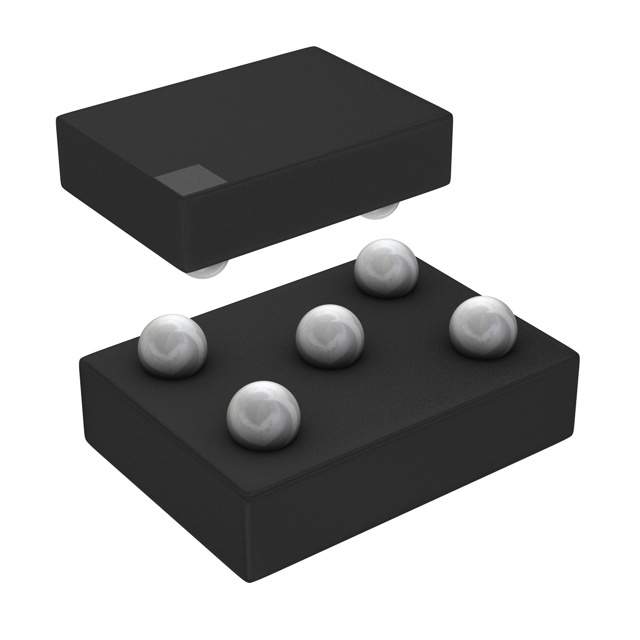

封装 DSBGA-5
封装 DSBGA-5
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74AUC1GU04YZPR TI 德州仪器 | 当前型号 | 当前型号 |
SN74AUC1GU04YEAR 德州仪器 | 完全替代 | SN74AUC1GU04YZPR和SN74AUC1GU04YEAR的区别 |
SN74AUC1GU04YZAR 德州仪器 | 完全替代 | SN74AUC1GU04YZPR和SN74AUC1GU04YZAR的区别 |
SN74AUC1GU04YEPR 德州仪器 | 功能相似 | SN74AUC1GU04YZPR和SN74AUC1GU04YEPR的区别 |
